Βάση IC PCB DIP 18pin 7.62mm 2.54mm Στενή Απλή XINYA
Προβολή

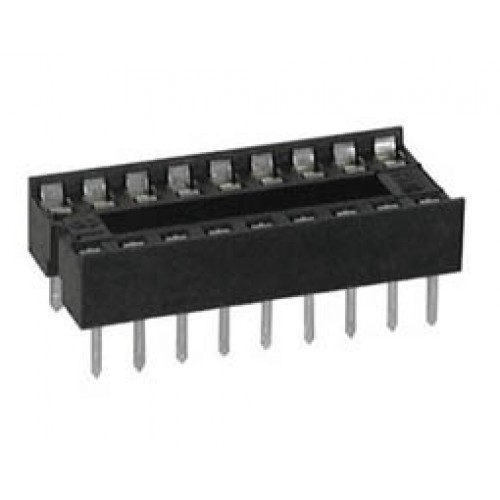

The 199-18P is a 18-way 2.54mm Through-hol IC Socket with tin over copper plated phosphor bronze contacts and PPS + glass reinforced insulator.
DIP SPACING: 7.62mm
Current ratings : 1A, 250VAC
Contact resistance : 30mohmR Maximum AT 100mA
Insulation resistance : 1000MΩ R Minimum ΑΤ 500V AC
Operating temperature range : -55 to +105°C
capacitance max : 2pf max
Contact : phosphor bronze
Applications
Communications & Networking
