Βάση IC PCB DIP 32pin 15.24mm 2.54mm Απλή XINYA
Αναμένεται Σύντομα
Προβολή

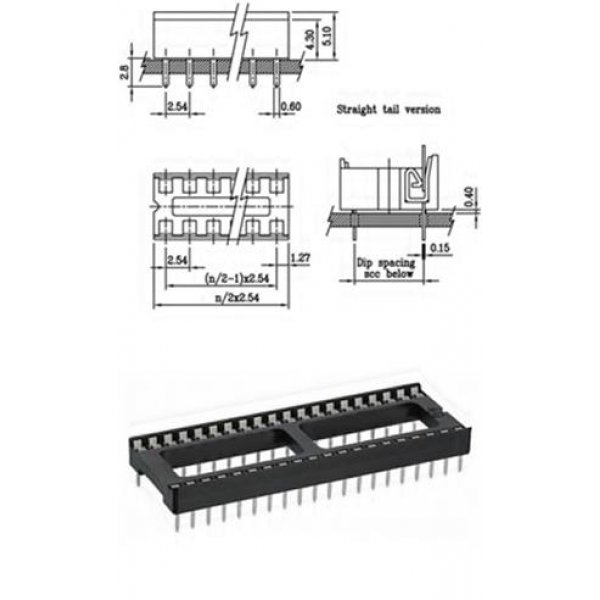

The 199-32P is a 32-way 2.54mm Through-hol IC Socket with tin over copper plated phosphor bronze contacts and PPS + glass reinforced insulator.
DIP SPACING: 15.24mm
Current ratings : 1A, 250VAC
Contact resistance : 30mohmR Maximum AT 100mA
Insulation resistance : 1000MΩ R Minimum ΑΤ 500V AC
Operating temperature range : -55 to +105°C
capacitance max : 2pf max
Contact : phosphor bronze
Applications
Communications & Networking
