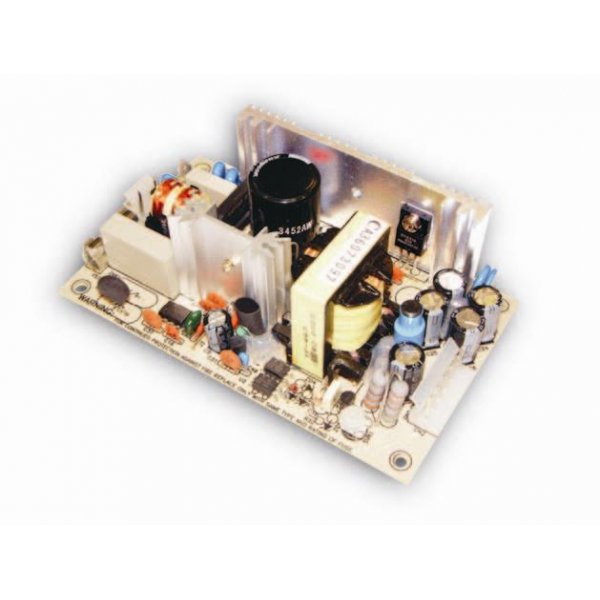

Τροφοδοτικό PS65-27 2.5A 27V MEAN WELL

 Τεχνικές προδιαγραφές

MODEL: PS-65-27
DC VOLTAGE: 27V
RATED CURRENT: 2.4A
CURRENT RANGE: 0 ~ 2.7A
RATED POWER: 64.8W
OUTPUT POWER (max.): Rated output power for convection; 72W (+3.3V : 50W;+5V:69W) with 18 CFM min. Forced air
RIPPLE & NOISE (max.): 100mVp-p
VOLTAGE ADJ. RANGE: 25.65 ~ 29.7V
VOLTAGE TOLERANCE: + - 2.0%
LINE REGULATION: + - 1.0%
LOAD REGULATION: + - 2.0%
SETUP, RISE TIME: 800ms, 20ms at full load
HOLD UP TIME (Typ.): 60ms at full load
VOLTAGE RANGE: 90 ~ 264VAC 127 ~370VDC
FREQUENCY RANGE: 47 ~ 440Hz
EFFICIENCY(Typ.): 80%
AC CURRENT (Typ.): 1.2A/115VAC 0.72A/230VAC
INRUSH CURRENT (Typ.): COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC
WORKING TEMP.: -10 ~ +60 (Refer to output load derating curve)
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
DIMENSION: 127*76*42mm (L*W*H)
PACKING: 0.21Kg; 54pcs/14.2Kg/1.35CUFT
