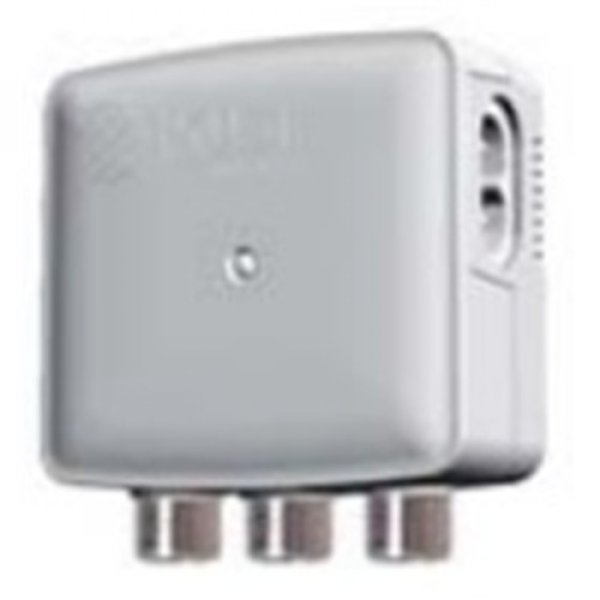

Τροφοδοτικό ενισχυτή ιστού micro 2 εξόδων 24V 100 mA APB224-MF IKUSI
Προβολή
• 1 RF input + DC output port — 2 or 4 RF output ports.
• 24 and 12 VDC operation voltage.
• Mains lead with bipolar plug. LED indicator.
• Reduced plastic box. Quick fi xing system.
Τεχνικά χαρακτηριστικά:
MODEL: APB-224-M.
Regulation type: switch mode.
Outputs: 2.
Mains voltage (50 Hz): 110-240 VAC.
Output voltage: +24 (±5%) VDC.
Max output current: 100 mA.
Frequency range: 40-862 MHz.
RF insertion loss: ≤ 4 dB.
Dimensions: 50x50x25 mm.
