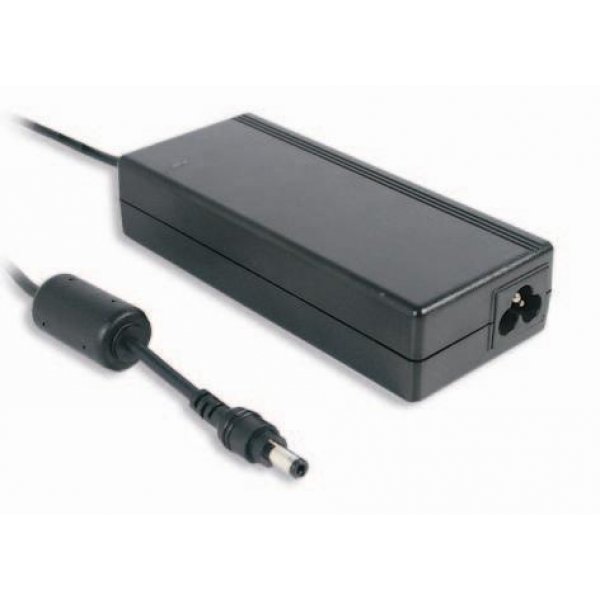

Τροφοδοτικό 230V->12V DC 6.6A SWITCH FM90C12-P1M MEAN WELL

ORDER NO.: FM90C12-P1M
SAFETY MODEL NO.: FDF0903-C
DC VOLTAGE: 12V
RATED CURRENT: 0~ 6.60A
RATED POWER: 80W
RIPPLE & NOISE (max.): 150mVp-p
VOLTAGE TOLERANCE: + - 5.0%
LINE REGULATION: + - 1.0%
LOAD REGULATION: + - 4.0%
SETUP, RISE , HOLD UP TIME: 300ms, 50ms , 10ms at full load
VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>= 0.90/230VAC
EFFICIENCY (Typ.): 80%
AC CURRENT: 1.3A/100VAC
INRUSH CURRENT (max.): 100A/240VAC
LEAKAGE CURRENT (max.): 0.75mA / 240VAC
WORKING TEMP.: 0 ~ + 50 (Refer to output load derating curve)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
DIMENSION: 133*58*30mm (L*W*H)
PACKING: 406g; 32pcs/14.5Kg/CARTON
PLUG: Standard type P1M: 2.5φ * 5.5φ * 11mm, tuning folk type center positive for stock ; Other type available by customer requested
CABLE¨Standard type UL1185, 16awg*4fts for stock ; Other type available by customer requested
