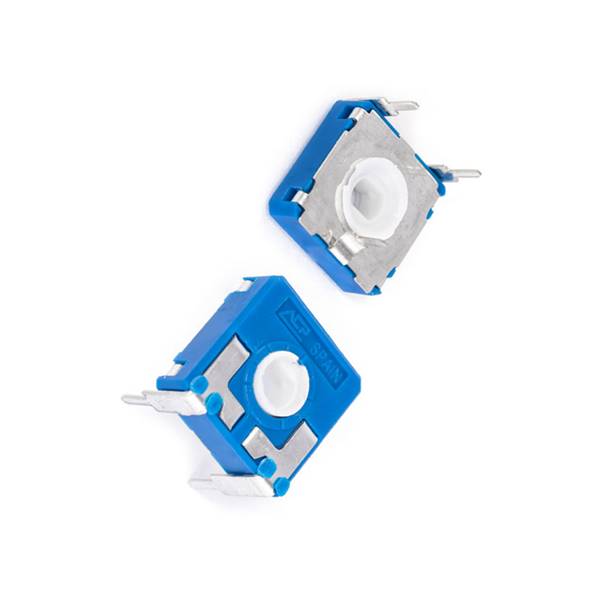

Trimmer μεγάλο κάθετο κλειστό 14x14mm THT HV 10K ohm 250mW CA14V-10K ACP
Προβολή
Specification.
Type of potentiometer mounting
Kind of potentiometer horizontal, single turn
Resistance 10kΩ
Power 250mW
Tolerance ±20%
Characteristics linear
Potentiometer standard 14mm
Mechanical rotation angle 265 ±5°
Torque <2,5Ncm
Max. operating voltage 250V DC
Operating temperature -25...70°C
Mounting THT
Terminal pitch 12.5x10mm
Track material carbon
Electrical rotation angle 245 ±20°
Body dimensions 14x14x6mm
Mechanical durability 1000 cycles
