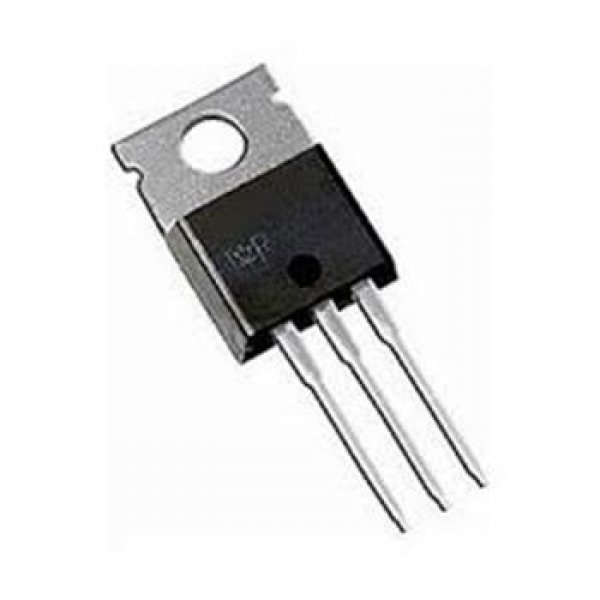

Transistor RFP50N06 Mosfet TO-220AB N-CH Power

-19% Transistor RFP50N06 Mosfet TO-220AB N-CH Power

Specifications

Manufacturer: Fairchild Semiconductor
Product Category: MOSFET
Transistor Polarity: N-Channel
Drain-Source Breakdown Voltage: 60 V
Gate-Source Breakdown Voltage: +/- 20 V
Continuous Drain Current: 50 A
Resistance Drain-Source RDS (on): 0.022 Ohms
Configuration: Single
Maximum Operating Temperature: + 175 C
Mounting Style: Through Hole
Package/Case: TO-220AB
Packaging: Tube
Fall Time: 13 ns
Minimum Operating Temperature: - 55 C
Power Dissipation: 131 W
Rise Time: 55 ns
Typical Turn-Off Delay Time: 37 ns
  • Κωδικός Προϊόντος: 011239
  • Διαθεσιμότητα: Διαθέσιμο
  • Στο κατάστημα: 4,60€
  • Τιμή web: 3,71€
  • (H τιμή συμπεριλαμβάνει ΦΠΑ)
  • Χωρίς ΦΠΑ: 2,99€
