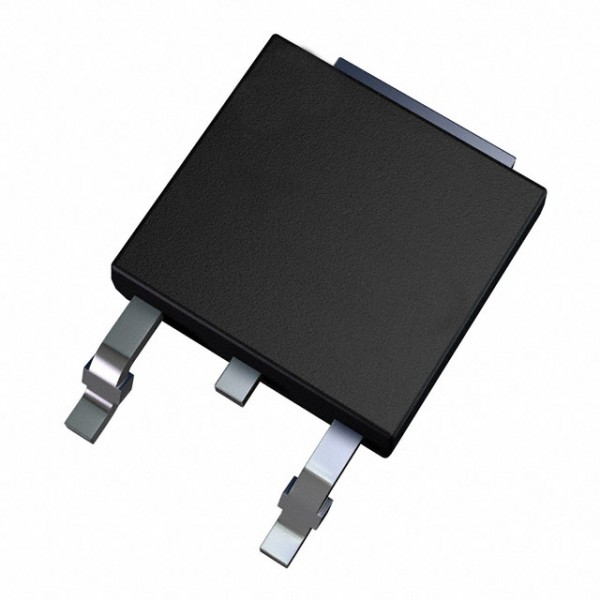

Transistor Linear Voltage Regulators 8V 500mA TO-252-3 UA78M08CKVURG3 Texas Instruments
Προβολή
Specifications
Mounting Style: SMD/SMT
Package/Case: TO-252-3
Number of Outputs: 1 Output
Polarity: Positive
Output Voltage: 8 V
Output Current: 500 mA
Output Type: Fixed
Input Voltage, Min: 10.5 V
Input Voltage, Max: 25 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 125 C
Load Regulation: 160 mV
Line Regulation: 100 mV
Quiescent Current: 6 mA
Moisture Sensitive: Yes
Product Type: Linear Voltage Regulators
PSRR / Ripple Rejection - Typ: 80 dB
Height: 2.3 mm
Length: 6.6 mm
Width: 6.1 mm
Unit Weight: 328,800 mg
