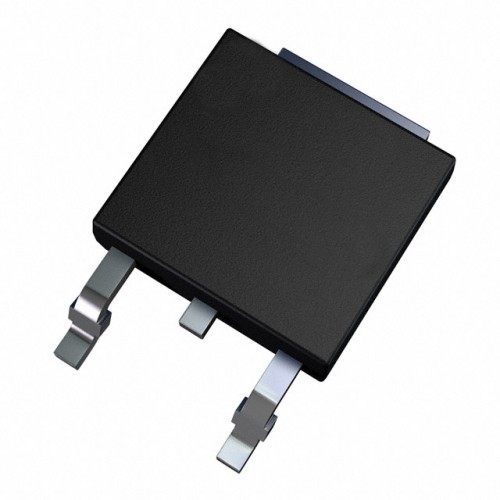

Transistor IGBT N-channel NGTG15N60S1EG
Προβολή
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 30A
Current - Collector Pulsed (Icm) 120A
Vce(on) (Max) @ Vge, Ic 1.7V @ 15V, 15A
Power - Max 117W
Switching Energy 550µJ (on), 350µJ (off)
Input Type Standard
Gate Charge 88nC
Td (on/off) @ 25°C 65ns/170ns
Test Condition 400V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) -
Package / Case TO-220-3
Mounting Type Through Hole
Supplier Device Package TO-220
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 30A
Current - Collector Pulsed (Icm) 120A
Vce(on) (Max) @ Vge, Ic 1.7V @ 15V, 15A
Power - Max 117W
Switching Energy 550µJ (on), 350µJ (off)
Input Type Standard
Gate Charge 88nC
Td (on/off) @ 25°C 65ns/170ns
Test Condition 400V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) -
Package / Case TO-220-3
Mounting Type Through Hole
Supplier Device Package TO-220
- Κατασκευαστής: ON Semiconductor
- Κωδικός Προϊόντος: 022723
- Διαθεσιμότητα: Διαθέσιμο
- Τιμή web: 3,90€
- (H τιμή συμπεριλαμβάνει ΦΠΑ)
- Χωρίς ΦΠΑ: 3,15€
