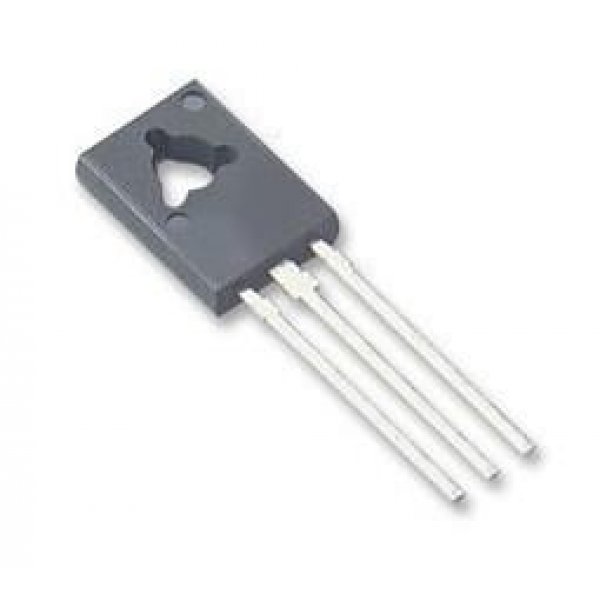

Transistor BD677
Προβολή
BD677 Si-N Darl NF-L 60v.4A.40W.=PT 6042 TO-126 Transistor BD677.
Descripción:
- TRANSISTOR DARLINGTON, TO-126
- Polaridad del transistor:NPN
- Collector-to-Emitter Breakdown Voltage:60V
- Power Dissipation Pd:40W
- DC Collector Current:4A
- DC Current Gain hFE:750
- Transistor Case Style:TO-126
- N.º of Pins:3
- SVHC:No SVHC
- Av Current Ic:4A
- Tipo de caja:TO-126
- Tensión IC hFE:1,5A
- Full Power Rating Temperature:25°C
- Max Current Ic:4A
- Max Current Ic Continuous a:4A
- Max Power Dissipation Ptot:40W
- Max Voltage Vce Sat:2,5V
- Min Hfe:750
Descripción:
- TRANSISTOR DARLINGTON, TO-126
- Polaridad del transistor:NPN
- Collector-to-Emitter Breakdown Voltage:60V
- Power Dissipation Pd:40W
- DC Collector Current:4A
- DC Current Gain hFE:750
- Transistor Case Style:TO-126
- N.º of Pins:3
- SVHC:No SVHC
- Av Current Ic:4A
- Tipo de caja:TO-126
- Tensión IC hFE:1,5A
- Full Power Rating Temperature:25°C
- Max Current Ic:4A
- Max Current Ic Continuous a:4A
- Max Power Dissipation Ptot:40W
- Max Voltage Vce Sat:2,5V
- Min Hfe:750
Ref Code: 038713
Specifications
Standard: DIN
Gender: Female
Number of Positions..
7,59€
Χωρίς ΦΠΑ:6,12€
