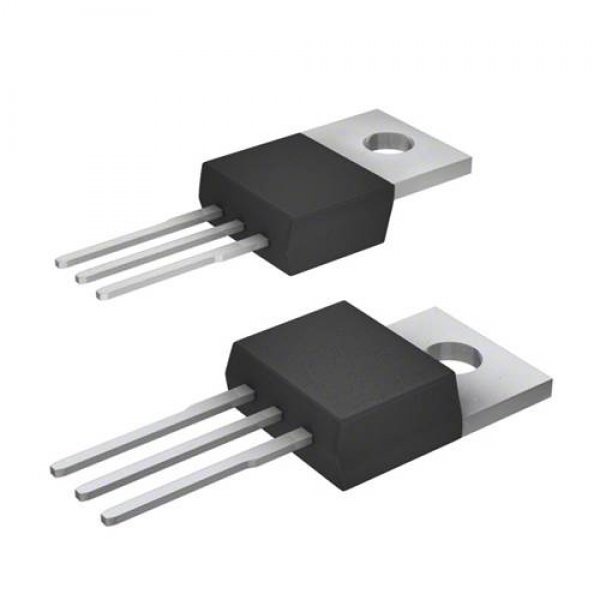

Transistor BD242BG PNP TO-220-3
Προβολή
Specifications
Package/Case: TO-220-3
Transistor Polarity: PNP
Configuration: Single
Collector- Emitter Voltage VCEO Max: 100 V
Collector- Base Voltage VCBO: 115 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 1.2 V
Maximum DC Collector Current: 3 A
Gain Bandwidth Product fT: 3 MHz
Maximum Operating Temperature: + 150 C
Continuous Collector Current: 3 A
DC Collector/Base Gain hFE Min: 25
Height: 9.28 mm
Length: 10.28 mm
Minimum Operating Temperature: - 65 C
Pd - Power Dissipation: 40 W
Width: 4.82 mm
Unit Weight: 6 g
