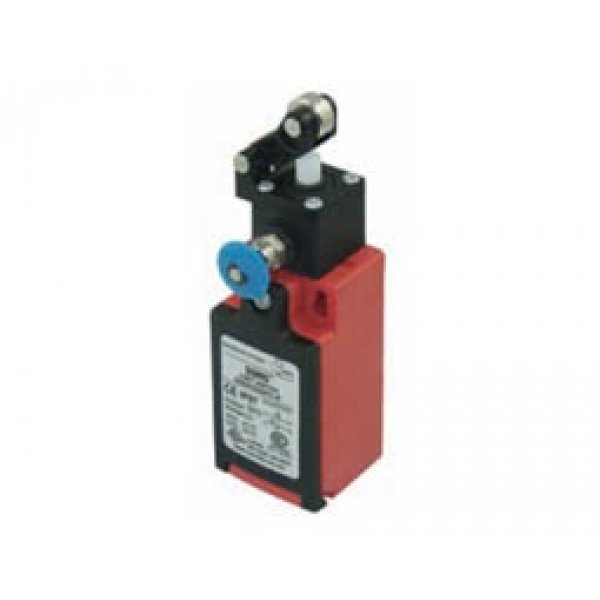

Τερματικός Διακόπτης Πλαστικός + Ροδάκι Με Βραχίωνα Και Reset SND4162-R SUNS
-24%
Προβολή
SND4 Safety Limit Switches
Features:
*Glass fiber reinforced plastic body
*Easily interchangeable contact block
*Galvanically separated contacts
*Screw terminals with self-lifting clamps for easy wiring
*Positive Opening of NC contacts
*4 x 90o actuator positions
*Cable entry available: M20, PG13.5 and 1/2"NPT
*Conform to EN 50047 standard
Specifications:
Operating Speed: 0.05mm-2m/sec
Operating Frequency: Mechanical:120ops/min Electrical: 30ops/min
Insulation Resistance: >100MΩ @ 500V DC
Contact Resistance: <25mΩ
Rated Current/Voltage: 10A/600V AC (EN60947-5-1)
Electrical Rating: UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300
Dielectric Strength: 1000VAC for 1 min between non-continuous terminals
2500VAC for 1 min between each terminal and ground
Service Life: Mechanically 10,000,000, Electrically 500,000
Operating Temperature: -25~80℃(-13~176°F) without formation of ice
Humidity: <95%RH
Weight： 50~100g
Degree of protection: IP67
