Τερματικός διακόπτης με καλώδιο + στρόγγυλο άκρο SN3101 Suns
-24%
Κατόπιν Παραγγελίας
Προβολή

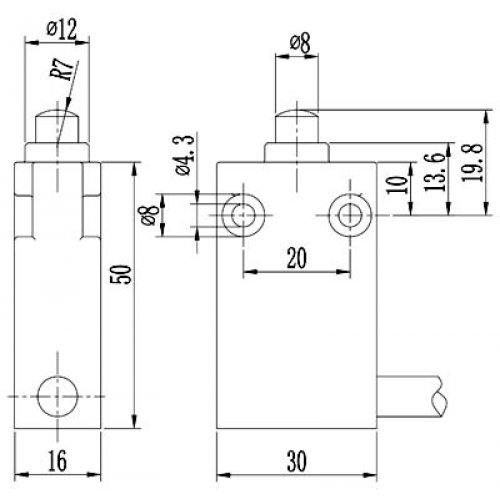

SN31 Compact Limit Switches
Features:
*Easy to install
*Golbal general standard
*M12 aviation connector available
Specifications:
Operating Speed: 0.05mm-2m/sec
Operating Frequency: Mechanical:120ops/min Electrical: 30ops/min
Insulation Resistance: >100MΩ @ 500V DC
Contact Resistance: <25mΩ
Rated Current/Voltage: 10A/300V AC (EN60947-5-1)
Electrical Rating: UL/cUL Listed(E216958) for AC15 A300/ DC13 Q300
Dielectric Strength: 1000VAC for 1 min between non-continuous terminals
2500VAC for 1 min between each terminal and ground
Service Life: Mechanically 10,000,000, Electrically 500,000
Operating Temperature: -25~85℃without formation of ice
Humidity: <95%RH
Cable: 5 core,0.75mm2
Degree of protection: IP67
Τεχνικές προδιαγραφέςFeatures:
*Easy to install
*Golbal general standard
*M12 aviation connector available
Specifications:
Operating Speed: 0.05mm-2m/sec
Operating Frequency: Mechanical:120ops/min Electrical: 30ops/min
Insulation Resistance: >100MΩ @ 500V DC
Contact Resistance: <25mΩ
Rated Current/Voltage: 10A/300V AC (EN60947-5-1)
Electrical Rating: UL/cUL Listed(E216958) for AC15 A300/ DC13 Q300
Dielectric Strength: 1000VAC for 1 min between non-continuous terminals
2500VAC for 1 min between each terminal and ground
Service Life: Mechanically 10,000,000, Electrically 500,000
Operating Temperature: -25~85℃without formation of ice
Humidity: <95%RH
Cable: 5 core,0.75mm2
Degree of protection: IP67
