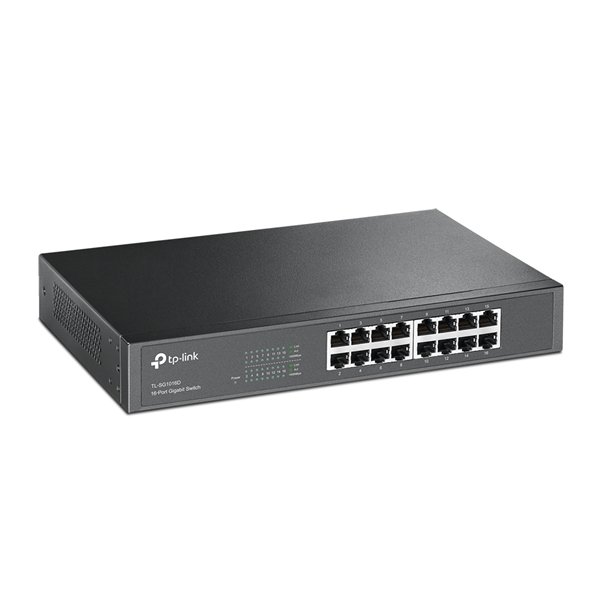

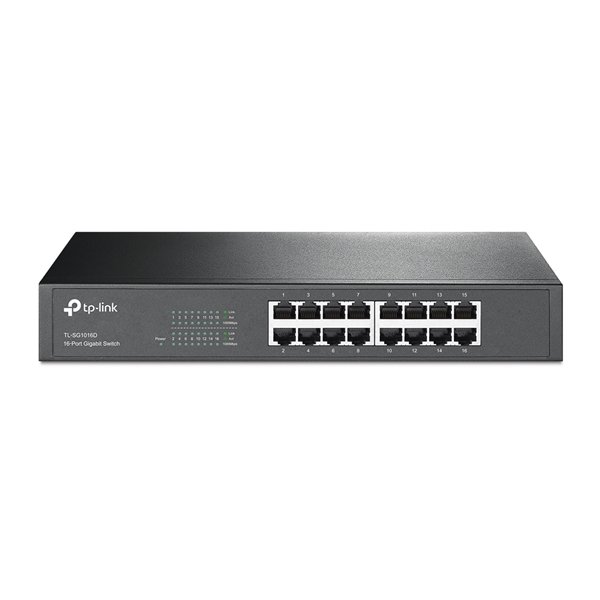

Switch 16-Port 10/100/1000Mbps TL-SG1016D + rackmount TP-LINK

 Τεχνικές προδιαγραφές

Το TL-SG10016D Gigabit Desktop Switch σας παρέχει μια υψηλής απόδοσης, χαμηλού κόστους, εύκολη στη χρήση, απρόσκοπτη και σίγουρη αναβάθμιση για τη βελτίωση του παλαιού δικτύου με δίκτυο στα 1000Mbps.
Και οι 16 θύρες υποστηρίζουν auto MDI/MDIX, χωρίς να χρειάζεται να ανησυχείτε για τον τύπο καλωδίου, γιατί παρέχει εύκολη εγκατάσταση plug and play.
Επιπλέον, με την πρωτοποριακή τεχνολογία αποδοτικής ενέργειας, το TL-SG10016D μπορεί να αποθηκεύσει έως και 40% της κατανάλωσης ενέργειας και το 80% του υλικού συσκευασίας μπορεί να ανακυκλωθεί, καθιστώντας το μία φιλική προς το περιβάλλον λύση για το δίκτυό της επιχείρησής σας.

Χαρακτηριστικά

- What This Product Does
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

- TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

- High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

- Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Τεχνικά χαρακτηριστικά

- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
- Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX).
- Network Media:
                             10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
                             100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m).
- Fan Quantity: Fanless.
- Switching Capacity: 32Gbps.
- Packet Forwarding Rate: 23.8Mpps.
- MAC Address Table: 8K.
- Jumbo Frame: 10KB.
- Green Technology: Yes.
- Transfer Method: Store-and-Forward.
- Operating Temperature: 0~40°C (32~104°F).
- Storage Temperature: -40~70°C (-40~158°F).
- Operating Humidity: 10~90%, non-condensing.
- Storage Humidity: 5~90%, non-condensing.
- Power Supply: 100-240VAC, 50/60Hz.
- Power Consumption: Maximum: 9.26W (220V/50Hz).
- Dimensions ( WxDxH ): 29.4 x 18 x 4.4 cm.
- Certification: FCC, CE, RoHs.

Περιλαμβάνονται

- TL-SG10016D.
- Τροφοδοτικό.
- Rackmount Kits.
- Πόδια Καουτσούκ.
- Οδηγίες Χρήσης.
