Splitter HDMI 1 In -> 4 Out 4K UHD 3D IDATA HDMI-4K4PMH Manhattan
Προβολή

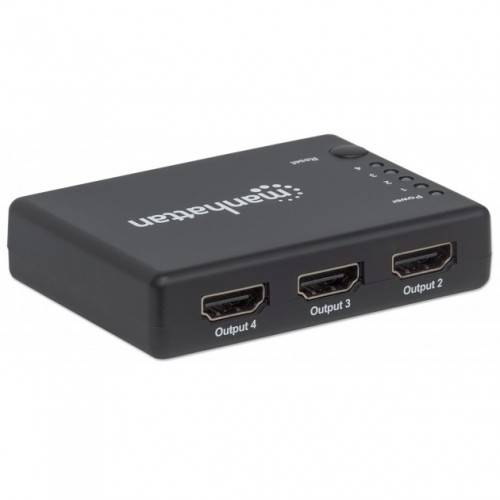

Manhattan IDATA HDMI-4K4PMH
HDMI Splitter 4-way 4K
Manhattan IDATA HDMI-4K4PMH easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays. The splitter has built-in booster streams a 4K HDMI signal from a single UHD source to up to four UHD displays. Best possible image quality and easy installation full compliance with HDMI and HDCP 1.4 ensures the 4K 4-Port HDMI splitter provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep Color, as well as LPCM, DTS and Dolby TrueHD audio. Quickly connect HDMI cables (not included) and the power supply to complete this cost-effective 4K solution — no software or hardware configuration or complicated settings required.
Feautures of hdmi splitter
Replicates an Ultra-High-Definition (UHD) digital audio/video signal for up to four UHD HDMI displays.
4K@30Hz resolution, full 3D video and Deep Color.
Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays.
Supports 36-bit Deep Color (12-bits per channel) and sYCC Color Space.
Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio.
HDCP compliant.
Multiple splitters (five total) may be cascaded up to support 16 4K displays.
Works with PlayStation, Xbox, Blu-ray players, set-top boxes, satellite receivers and more.
Plug and play
Gold-plated contacts for corrosion-free connections.
Features
Standards and Certifications
HDCP 1.4, CTS 1.4b, CE, FCC, RoHS2
General
Source-to-splitter and splitter-to-display range: up to 15 m (49 ft.)
Power adapter: 5 VDC / 1 A, 70 cm (2.3 ft.)
Power consumption: 5 W
Connections
One HDMI female (input)
Four HDMI female (output)
One 5 VDC power female (input)
Signal Input/Output
Input video signal: 0.5 – 1.0 V p-p
Input DDC signal: 5 V p-p (TTL)
Maximum single-link range: 10.2 Gbps and 4096x2160 at 24 Hz resolution
Output video: HDMI 1.4, HDCP 1.4
Supported Video Resolutions
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
Supply
Power supply: Required (included)
The set contents
1x 4K Compact 4-Port HDMI Splitter
1x Power supply
1x User Manual.
