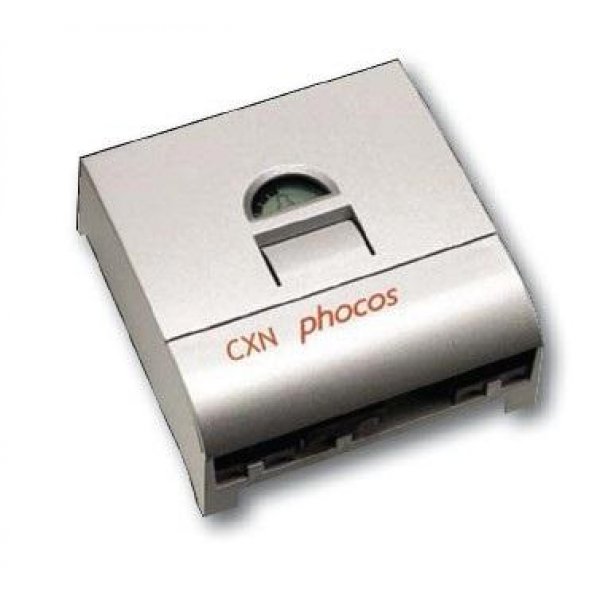

Ρυθμιστής φόρτισης 12V-24V 40A CXN-40 PHOCOS

ΡΥΘΜΙΣΤΗΣ ΦΟΡΤΙΣΗΣ PHOCOS 12/24V - 40A
Ρυθμιστής φόρτισης φωτοβολταϊκών PWM SOC.12V/24V- 40A. Φόρτιση: Boost / absorption / float PWM. γείωση του - . Σύνδεση με υπολογιστή.

Type CXN 40
System voltage 12/24 V auto recognition
Max. charge/load current 40 A
Float charge 13.7/27.4 V (25 °C)
Main charge 14.4/28.8 V (25 °C), 30 min. (daily)
Boost charge 14.4/28.8V (25 °C), 2 h
activation: battery voltage < 12.3/24.6 V
Equalization 14.8/29.6 V (25 °C), 2 h
activation: battery voltage < 12.1/24.2V
Deep discharge protection: State of charge dependent

Voltage dependent


Adaptive
Reconnect level

A: 11.4 – 11.9 V / 22.8 – 23.8 V B: 11.0 – 11.75 V / 22.0 – 23.5 V A: 11.0/22 V
B: 11.5/23 V
11.0 – 12.2 V / 22.0 – 24.4 V
12.8/25.6 V
Overvoltage protection 15.5/31.0 V
Undervoltage protection 10.5/21.0V
Max. panel voltage
(Overvoltage protection by varistor) 30 V in 12 V system
50 V in 24 V system
Temperature compensation
(Charge voltage) −25 mV/K at 12 V
−50 mV/K at 24 V
Self consumption < 6 mA
Grounding negative grounding possible
Ambient temperature −20 to +50 °C
Max. height 4,000 m above sea level
Battery type lead acid (GEL, AGM, flooded)
Wire cross section < 16 mm2
Weight 168 g 179 g
Dimensions (W x H x D) 92 x 93 x 38 mm
Type of protection IP22
