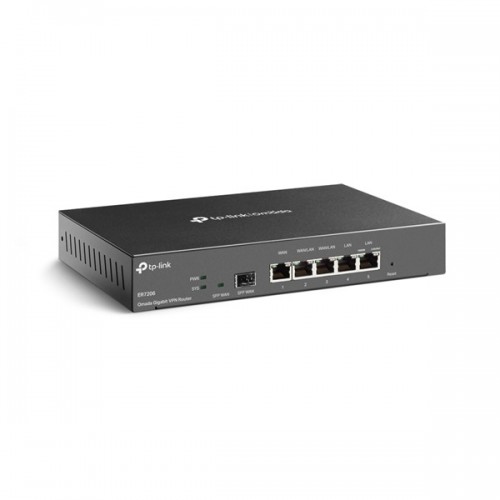

Router VPN Gigabit Multi-WAN + SFP SafeStream TL-ER7206 TP-LINK

Χαρακτηριστικά

Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interfaces
• 1 Fixed Gigabit SFP WAN Port
• 1 Fixed Gigabit RJ45 WAN Port
• 2 Fixed Gigabit RJ45 LAN Ports
• 2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button: Reset Button
Power Supply: 100–240 V~50/60 Hz
Flash: SPI 4MB + NAND 128MB
DRAM: 512MB
LED: PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

• PERFORMANCE
Concurrent Session 150,000
IPsec VPN Throughput 291.6 Mbps
BASIC FUNCTIONS
WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Clone Modify WAN/LAN MAC Address†
DHCP
• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*
IPv6: Yes
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy

• ADVANCED FUNCTIONS
ACL: IP/Port/Protocol/Domain Name Filtering
Advanced Routing
• Static Routing
• Policy Routing
Bandwidth Control
• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
NAT
• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit: IP-based Session Limit

VPN
IPsec VPN;
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2*
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN
• PPTP VPN Server
• 10 PPTP VPN Clients**
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN:
• L2TP VPN Server
• 10 L2TP VPN Clients**
• 50 Tunnels
• L2TP over IPSec
OpenVPN:
• OpenVPN Server*
• 10 OpenVPN Clients*△
• 50 OpenVPN Tunnels*

SECURITY
Filtering WEB Group Filtering§
URL Filtering
Web Security§
ARP Inspection:
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
Attack Defense:
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control Source/Destination IP Based Access Control
Omada App: Yes

• Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
