Router VPN Gigabit Multi-WAN Omada ER605 TP-LINK

Χαρακτηριστικά

HARDWARE FEATURES
Standards and Protocols:
• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

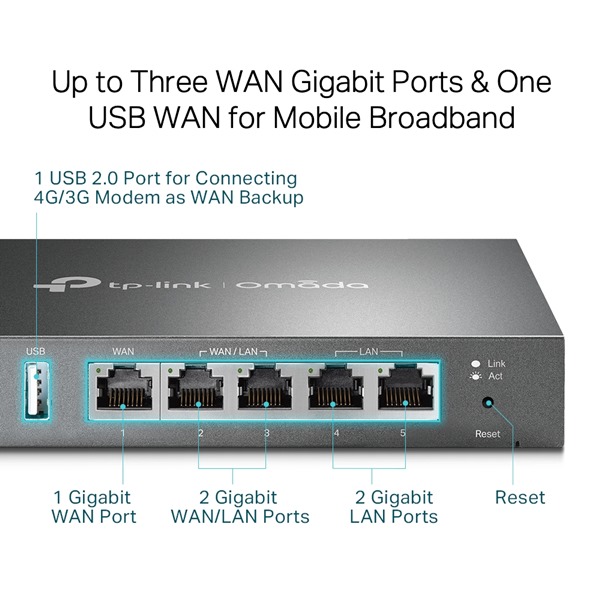

Interface:
• 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button: Reset Button

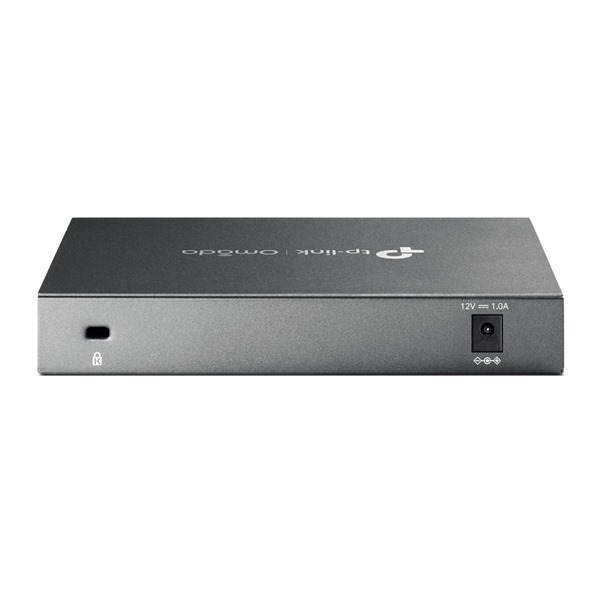

Power Supply; External 12V/1A DC Adapter
Flash: 128 MB NAND
DRAM: 256 MB DDR
LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Max Power Consumption: 7.94 W

PERFORMANCE
Concurrent Session: 150,000
New Sessions /Second: 2,600
NAT (Static IP)
• Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bi-Directional: 1808.29 Mbps
NAT(DHCP)
• Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bi-Directional: 1808.11 Mbps
NAT(PPPoE)
• Upload: 940.44Mbps
• Download: 940.52 Mbps
• Bi-Directional: 1804.27 Mbps
NAT (L2TP)
• Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bi-Directional: 931.96 Mbps
NAT (PPTP)
• Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bi-Directional: 999.54 Mbps
64 Byte Packet Forwarding Rate
• Upload/Download: 1,402,238 pps
• Bi-Directional: 1,681,548 pps
IPsec VPN Throughput
• ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mbps
• ESP-SHA2-AES256: 248.04 Mbps
OpenVPN
• 21.70 Mbps
L2TP VPN Throughput
• Unencrypted: 864.65 Mbps
• Encrypted: 47.11 Mbps
PPTP VPN Throughput
• Unencrypted: 703.20 Mbps
• Encrypted: 76.65 Mbps

BASIC FUNCTIONS
WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port‡
MAC Clone
Modify WAN/LAN MAC Address†
DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS
ACL: IP/Port/Protocol/Domain Name Filtering
Advanced Routing
• Static Routing
• Policy Routing
Bandwidth Control: IP-based Bandwidth Control
Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
NAT
• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit: IP-based Session Limit
VPN
IPsec VPN
• 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN
• PPTP VPN Server
• 10 PPTP VPN Clients**
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN
• L2TP VPN Server
• 10 L2TP VPN Clients**
• 16 Tunnels
• L2TP over IPSec
OpenVPN
• OpenVPN Server*
• 10 OpenVPN Clients*△
• 16 OpenVPN Tunnels*

SECURITY
Filtering
• WEB Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control; Source/Destination IP Based Access Control

• Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
