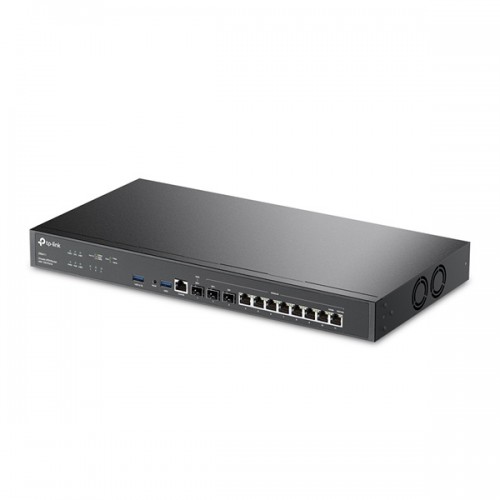

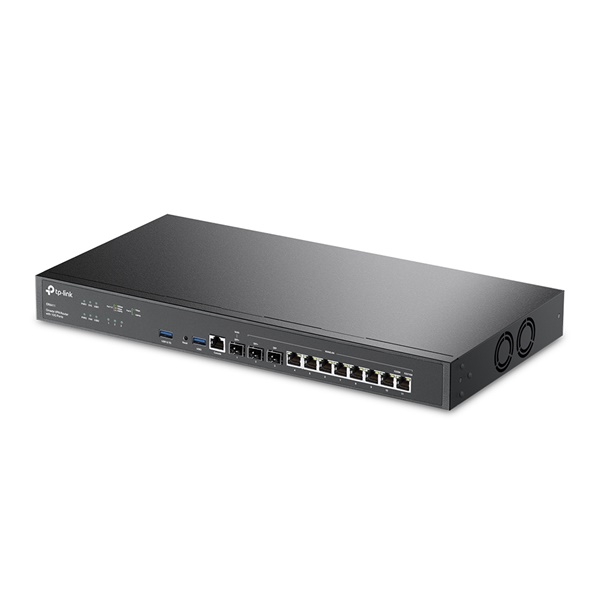

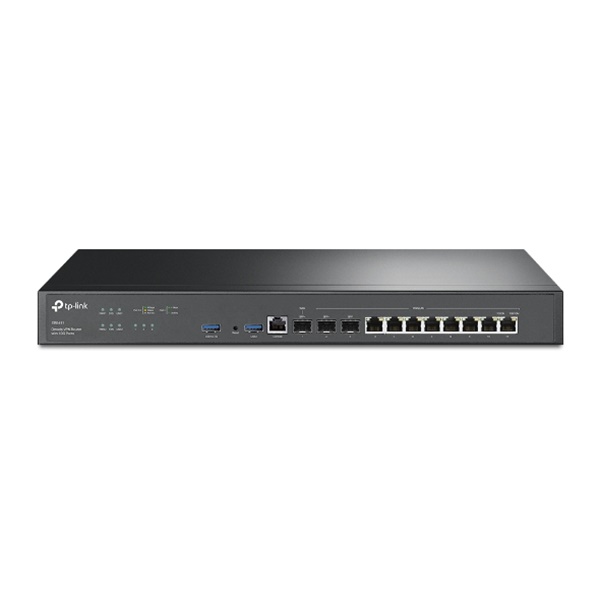

Router VPN Gigabit Multi-WAN + 10GE SFP+ SafeStream TL-ER8411 TP-LINK

Χαρακτηριστικά

• SECURITY
- Access Control: Source/Destination IP Based Access Control
- Filtering
• WEB Group Filtering*5
• URL Filtering
• Web Security*5
- ARP Inspection:
• Sending GARP Packets*5
• ARP Scanning*5
• IP-MAC Binding*5
- Attack Defense:
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

• HARDWARE FEATURES
- Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

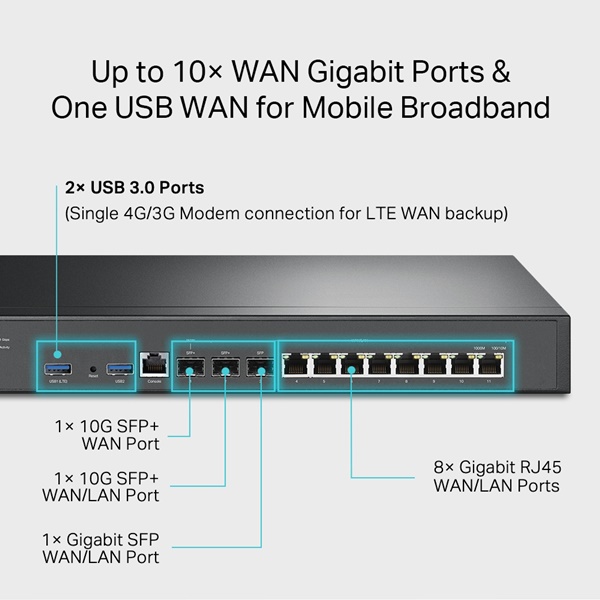

- Interface:
• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Ports
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Ports
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
- Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
- Fan Quantity: 2
- Button: Reset Button

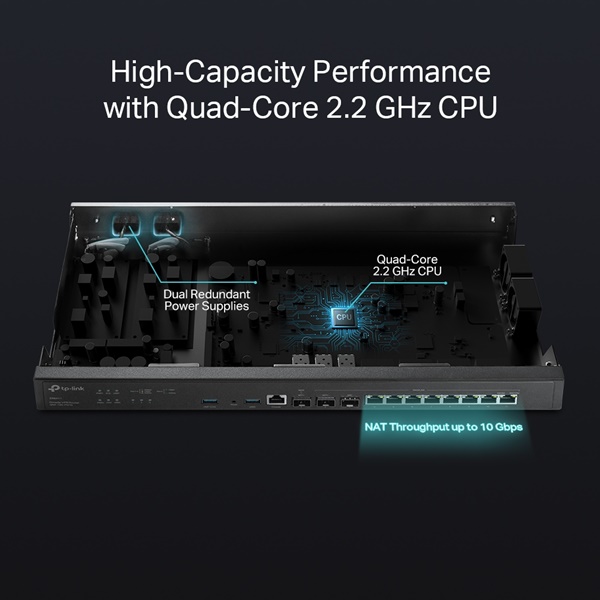

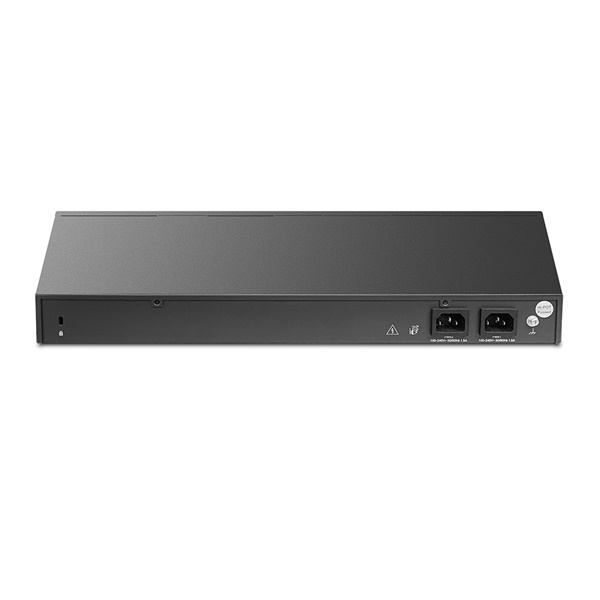

- Power Supply: Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
- PoE Budget: -
-Flash: 4MB SPI NOR + 256 MB NAND
- DRAM :4 GB DDR4
- LED :PWR, SYS, WAN, LAN, USB, FAN

- Protection: 4 kV surge protection
- Mounting: Rack Mountable
- Max Power Consumption
• 26.36 W (with USB 3.0 connected)
• 19.12 W (without USB 3.0 connected)

• BASIC FUNCTIONS
WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• 6to4 Tunnel
• Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
- MAC Clone: Modify WAN/LAN MAC Address*4
- DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
- IPv6 WAN Connection
- VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
• Link Backup (Timing*5, Failover)
• Online Detection
- NAT
• One-to-One NAT*5
• Multi-Net NAT
• Port Forwarding
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
- Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management

• AUTHENTICATION
- Web Authentication
• No Authentication
• Simple Password*2
• Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2）
• External Radius Sever
• External Portal Sever*2
• Instagram Follow*2>

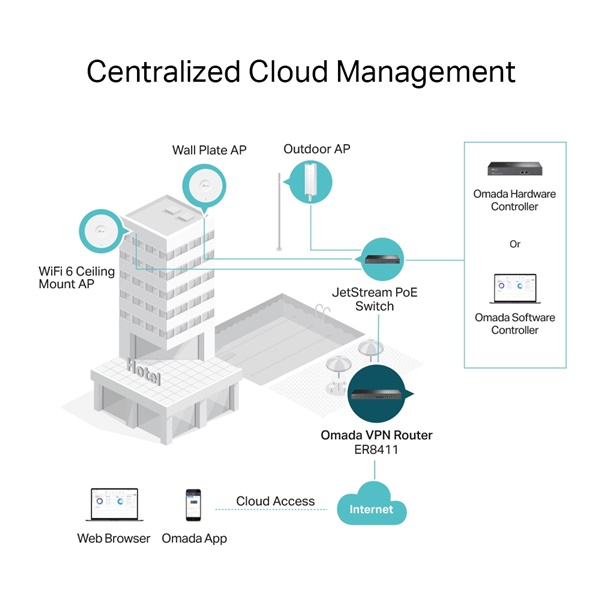

• MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
- Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Syslog Support

- Dimensions ( W x D x H ): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
