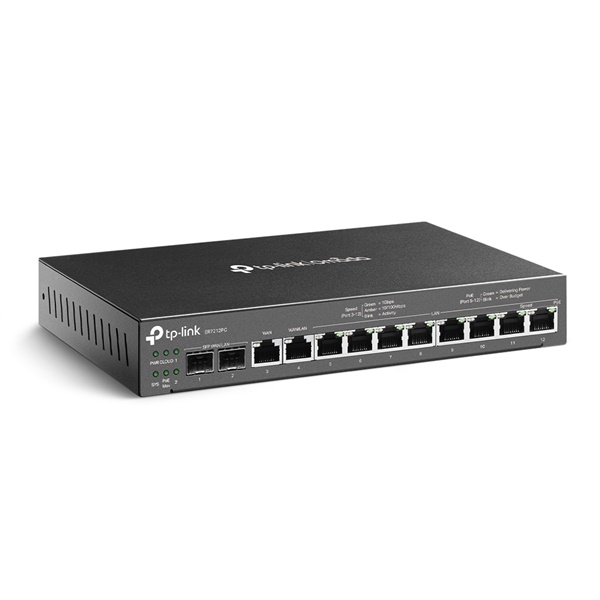

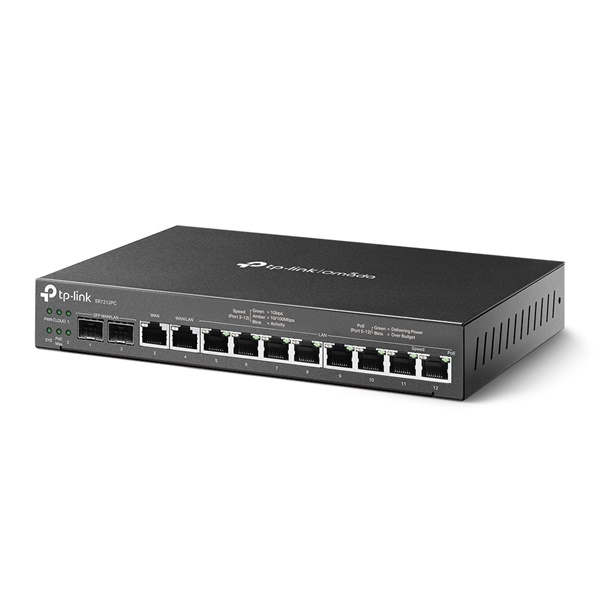

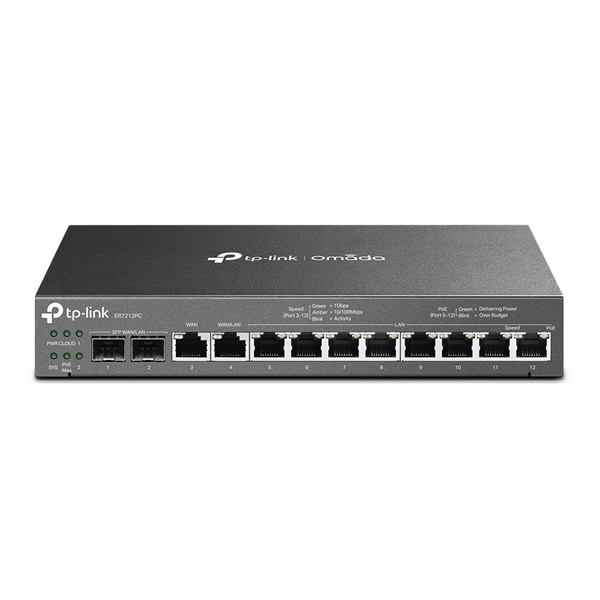

Router switch 8xGigabit PoE με ενσωματωμένα Omada Controller ER7212PC TP-LINK

Χαρακτηριστκά

• HARDWARE FEATURES (V1.0 )

Interface
• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity: Fanless
Button: Reset Button
Power Supply: 53.5VDC/2.43A Adapter
PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
Flash: 8Mb Nor + 4 GB EMMC
DRAM: 1 GB DDR3
LED: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Protection: 4 kV surge protection
Enclosure Steel
Mounting Desktop/Wall-mount

Max Power Consumption
• 133.2W with PoE Max
• 13.88W without PoE

PERFORMANCE
Concurrent Session 24,980
New Sessions /Second 1,900
NAT (Static IP) 935.5 Mbps / 942.1 Mbps
NAT(DHCP) 940.2 Mbps / 941.7 Mbps
NAT(PPPoE) 913.1 Mbps / 935.2 Mbps
NAT (L2TP) 545.0 Mbps / 912.7 Mbps
NAT (PPTP) 523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput (AES256) 168.5 Mbps
IPsec VPN Throughput AES256: 168.5 Mbps
OpenVPN: 34 Mbps
L2TP VPN Throughput
• Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps
PPTP VPN Throughput
• Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate 154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps

BASIC FUNCTIONS
WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP

DHCP
• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

Advanced Routing
• Static Routing
• Policy Routing

MANAGEMENT
Omada App Yes
Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes
Service Dynamic DNS (Dyndns, No-IP)


Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
