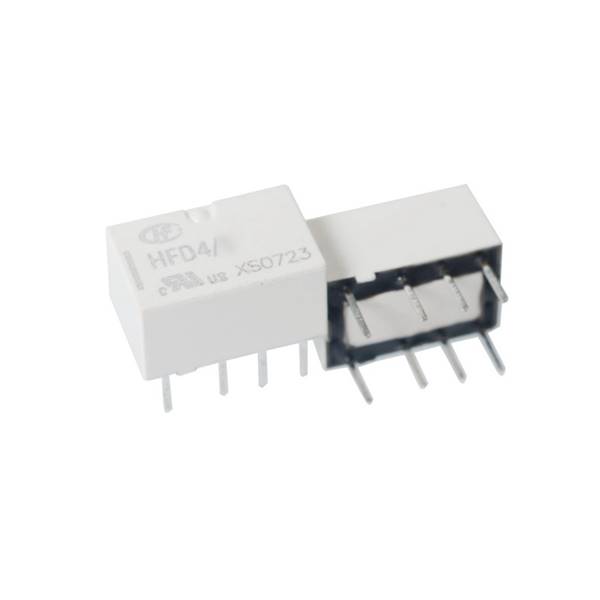

Relay ultra mini 12V 0.5A DC 2pins DPDT HFD4/12 Hongfa
-17%
Προβολή
Specification
Contacts configuration DPDT
Rated coil voltage 12V DC
AC contacts rating @R
(at resistive load) 0.5A / 125V AC
DC contacts rating @R
(at resistive load) 2A / 30V DC
Contact current max. 2A
Switched voltage max. 220V DC, max. 250V AC
Relay variant signal, subminiature
Mounting PCB
Coil resistance 1028Ω
Coil voltage min. 9V DC
Coil voltage max. 18V DC
Operate time 3ms
Release time 3ms
Coil power consumption 140mW
Operating temperature -40...85°C
Contact resistance 100mΩ
Contact material AgNi + Au
Terminal pitch 2.2mm
Body dimensions 10x6.5x5.4mm
