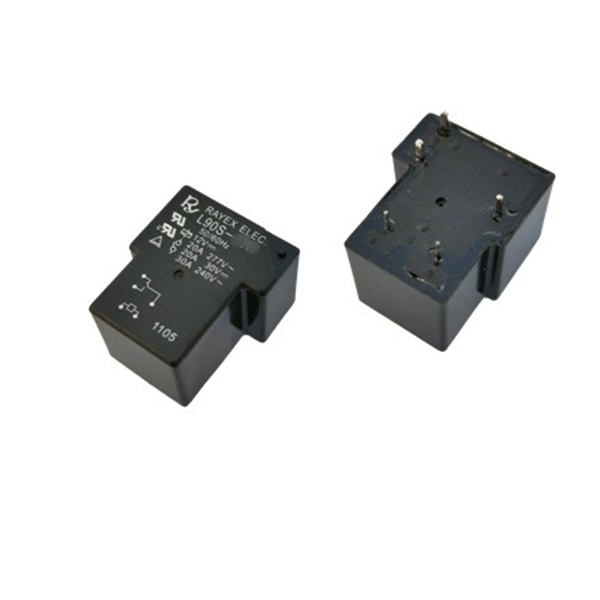

Relay τύπου Τ 30A 24V SPDT-NC L90S-24W Rayex Electronics
Νέο
-40%
Αναμένεται Σύντομα
Προβολή
Relay τύπου Τ 30A 24V SPDT-NC 6pin .
Leads for PCB
Mounting PCB
Contacts configuration SPDT
Rated coil voltage 24V DC
Contact current max. 30A
Operating temperature -55...85°C
Switched voltage max. 30V DC, max. 240V AC
Coil resistance 660Ω
AC contacts rating @R(at resistive load)
at resistive load 30A / 240V AC
Contact material AgCdO
DC contacts rating @R(at resistive load)
at resistive load 20A / 30V DC
Coil power consumption 0.9W
Contact resistance 50mΩ
Operate time 15ms
Release time 15ms
Mechanical durability 10000000 cycles
Electrical life 100000 cycles
