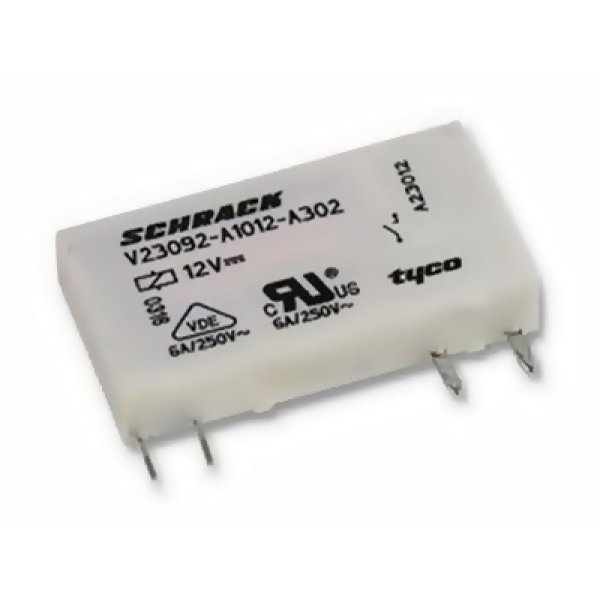

Relay slim SNR 1P 12V DC 6A PCB 1C/O V23092-A1012-A301 TYCO

 Τεχνικές προδιαγραφές

RELAY, PCB, SPCO, 5VDC
Relay Type: General Purpose
Coil Voltage VDC Nom: 5V
Contact Current Max: 6A
Contact Voltage AC Nom: 240V
Coil Resistance: 148ohm
Contact Configuration: SPCO
Coil Type: DC, Monostable
Nom Operating Power: 170mW
Relay Mounting: PCB
External Height: 28mm
External Width: 5mm
External Depth: 15mm
Contact Configuration: SPCO
Contact Current AC Max: 6A
Contact Voltage AC Max: 250V
Contact Voltage DC Max: 300V
External Length / Height: 28mm
Mounting Type: PCB
No. of Poles: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Series: V23092
Approval Bodies: VDE
Approval Category: UL Recognised
Coil Operating Lower Percent Limit: 65%
Coil Operating Upper Percent Limit: 160%
Coil Sensitivity: 170mW
Contact Material: AgSnO2
DC Coil Power: 170mW
Dielectric Strength VDC: 4kV
Dielectric Voltage Coil to Contact: 4kV
Dielectric Voltage Contact to Contact: 1kV
Must Actuate Voltage: 3.5V
Must Release Voltage: 0.25V
Operating Time: 5ms
PCB Hole Diameter: 1.3mm

Επισκόπηση

SNR Series - Slim Relays

High coil sensitivity: 170mW
Compact design (5mm thickness) for high density PCB mounting
Coil power: 210 mW
Operating temperature range: -40 to +85°C
Creepage and clearance: 8 mm; 6 mm
Isolation coil to contact: 4000Vac
Switching voltage: 250Vac
H 15, W 28, D 5

Εγκρίσεις

UL, CSA, VDE
