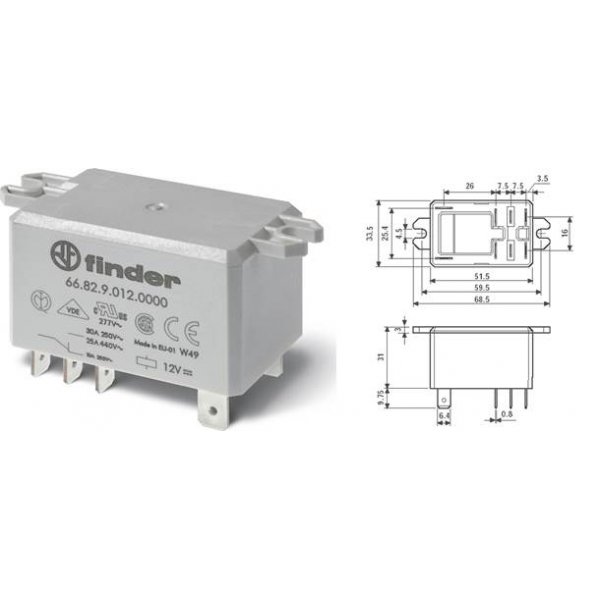

Relay ισχύος 24V DC 30A 2 x επαφές Faston connection 6.3 mm 66.82.9 24.000 Findres
-28%
Αναμένεται Σύντομα
Προβολή
Product Description
30 A power relay with Faston connection 6.3 mm for flange mounting
• Coil for AC or DC
• Reliable separation between coil and contact set according to VDE 0160, EN 60204 and EN 60335
• 6 kV (1.2/50µs), 8 mm air and creepage distance
Technical information
General
Type Power relay
Design 2x changeover contact
Interfaces
ConnectionFaston 6.3 mm
Contacts AgNi/Au
Electrical values
Switching voltage 440 V AC
Switching capacity 7500 VA (closing) / 2500 VA (openers) (AC1)
Voltage DC 24 V=
Internal resistance (Ri) 340 Ohm
Current 30 NO contact/10 NC contact
Test voltage 4000 V
Approval VDE, UL, CSA, IMQ
Implementation
Mounting Flange mounting
Measures
Length51.5 mm Width33.5 mm Height31 mm
