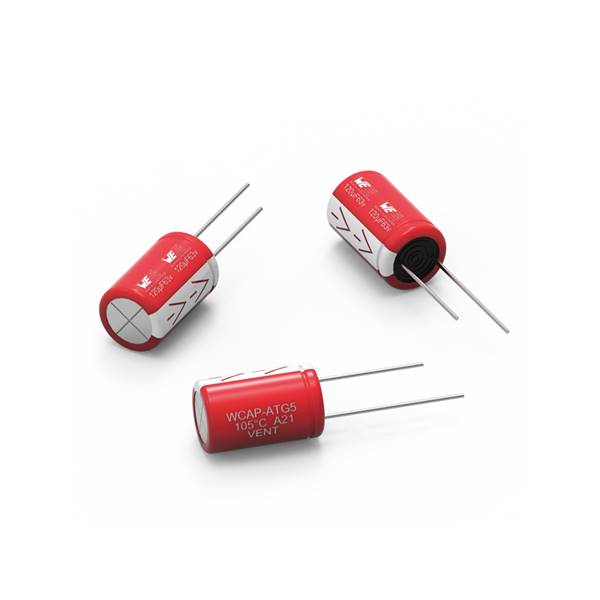

Πυκνωτής ηλεκτρολυτικός 400V 6,8μF 105*C 10x12.5mm WCAP-ATG5 Wurth Electronics
Προβολή
Specifications
Termination Style: Radial
Capacitance: 6.8 uF
Voltage Rating DC: 400 VDC
Maximum Operating Temperature: + 105 C
Life: 2000 Hour
Tolerance: 20 %
Ripple Current: 82 mA
Minimum Operating Temperature: - 25 C
Lead Style: Straight
Series: WCAP-ATG5
Capacitance - nF: 6800 nF
Dissipation Factor DF: 15
Leakage Current: 81.6 uA
Diameter: 10 mm
Lead Spacing: 5 mm
Length: 12.5 mm
