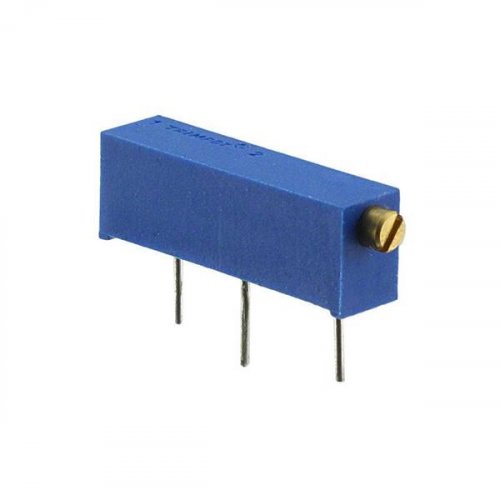

Ποτενσιόμετρο πολύστροφο TSR-3296Y 200KΩ Τετράγωνο 28 στροφών
Προβολή
ΠΟΤΕΝΣΙΟΜΕΤΡΟ ΠΟΛYΣΤΡΟΦΟ TSR-3296Y 200KΩ ΤΕΤΡΑΓΩΝΟ 28 ΣΤΡΟΦΩΝ
5 Terminal Square Trimming Potentiometer Electrical Characteristics
Standard Resistance Range 10Ω - 5MΩ
Resistance Tolerance ±10% (±20% only for 10 ohm)
Absolute Minimum Resistance ≤1% R or 2Ω
Contact Resistance Variation CRV≤1%or 3Ω
Insulation Resistance R1≥1GΩ(500V AC)
Withstand Voltage 640V AC
Effective Travel 28 turns nom
5 Terminal Square Trimming Potentiometer Electrical Characteristics
Standard Resistance Range 10Ω - 5MΩ
Resistance Tolerance ±10% (±20% only for 10 ohm)
Absolute Minimum Resistance ≤1% R or 2Ω
Contact Resistance Variation CRV≤1%or 3Ω
Insulation Resistance R1≥1GΩ(500V AC)
Withstand Voltage 640V AC
Effective Travel 28 turns nom
