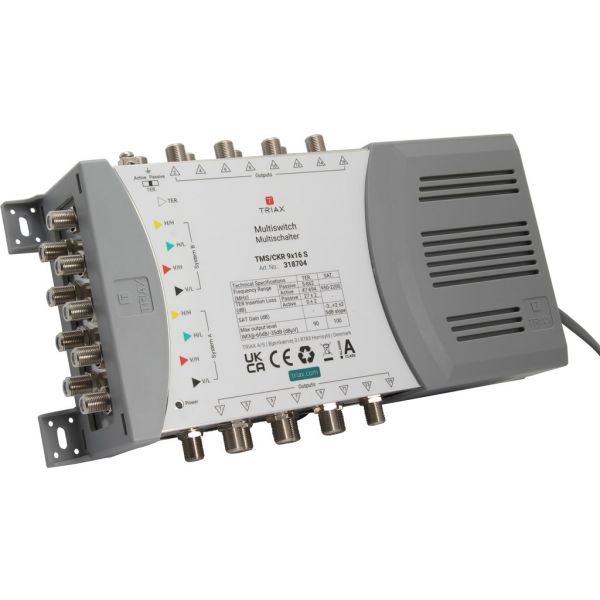

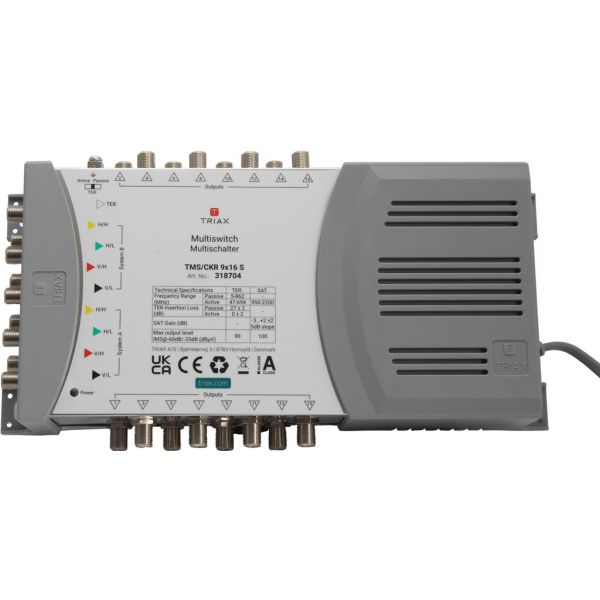

Πολυδιακόπτης stand-alone 9x16 TMS/CKR 9x16S TRIAX

 Τεχνικές προδιαγραφές

Standalone multiswitch for 2 Satellite positions with 9 inputs and 16 outputs, suitable for distributing satellite and terrestrial signals in small and medium sized systems.
Dependability guaranteed: a 6-year warranty is our guarantee that TRIAX’s core values of reliability and innovation are the foundation of our new multiswitches.

ELECTRICAL
Impedance 75 Ω

CONNECTORS
Connector Type F-female
Number of inputs 5
Subscriber outputs 16
Power connector EU main plug
Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS
LNB type Quattro
Max. input level - SAT (IMD3 - 35dB) 98 dBµV
Max. input level - TER (IMD3 - 60dB) 90 dBµV
Max. output level SAT @ -35 dB IMD3 100 dBµV
Max. output level TER @ -60dB IMD3 90 dBµV
LNB current max. 1000 mA
Switch commands DiSEqC 1.0/2.0, 13/18V, 0/22kHz

FREQUENCY RANGE
Frequency range TER Active: 47…694 / Passive: 5...862 MHz
Frequency range SAT 950…2200 MHz

GAIN
Gain - SAT (with 5 dB slope) -3…+2 ± 2 dB
Gain - TER 0 ± 2 dB

LOSS
Tap loss TER 27 ± 2 dB

ISOLATION
Isolation SAT to TER 30 dB
Isolation cross polarisation H/V 30 dB
Isolation out-out SAT 30 dB
Isolation out-out TER 25 dB

RETURN LOSS
Return loss SAT inputs >10 dB
Return loss TER inputs >10 dB
Return loss TAP outputs >10 dB

OPERATIONAL
AC Supply voltage 180…264 VAC
ESD protection 4KV inputs & sub outputs
Power Consumption (typ.) 3.5W max. TER active 2W max. TER passive W
Max. current pass per F-connector 2000 mA
Max. current to each output (supplied by set top box) <50 mA
Control LEDs Green LED (Power)
Temperature - operating -20…+55 °C
