Πολυδιακόπτης C- Cascade 9 in ->8out TMS 9x8c TRIAX

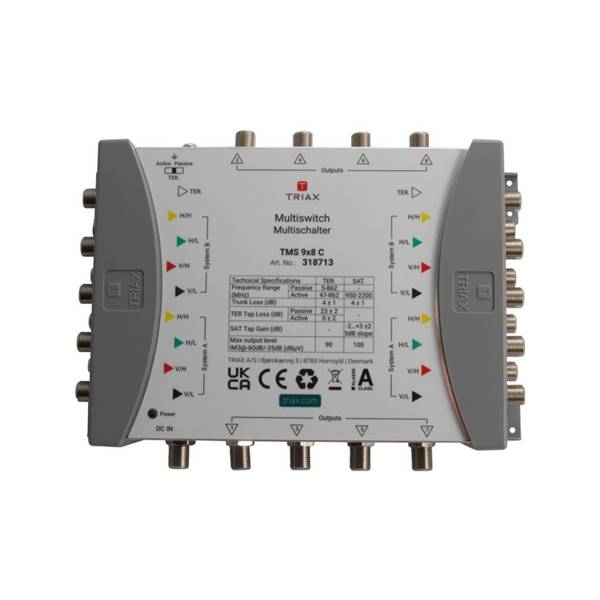

TMS 9x8 C
Cascade multiswitch for 2 Satellite positions with 9 inputs and 9 trunk outputs, suitable for distributing satellite and terrestrial signals in small to large sized systems. Available with 8 subscriber outputs and powered by the TMS PSU external power supply either directly or via the SAT trunk lines.

Dependability guaranteed: a 6-year warranty is our guarantee that TRIAX’s core values of reliability and innovation are the foundation of our new multiswitches.

The TMS 9x8 C offers excellent performance and flexibility, with a compact design for installations even in confined spaces.

Excellent performance

Low insertion loss
High isolation
Low power consumption
RED compliant
ESD Protection
Flexibility

All the functionality you need in a simplified, streamlined range:

Easier to select the right product
Fewer products to stock
Active/Passive Terrestrial Switch
Convenience

Designed with installer convenience in mind:

Equidistant F-connectors on all multiswitches
Colour-coded input labels
LED power indicator
Flexible power injection

CONNECTORS
Connector Type F-female
Connector DC F-female
Number of trunk inputs 8 SAT, 1 TER
Number of trunk outputs 8 SAT, 1 TER
Subscriber outputs 8
Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS
LNB type Quattro
Max. input level - SAT (IMD3 - 35dB) 97 dBµV
Max. input level - TER (IMD3 - 60dB) 90 dBµV
Max. output level SAT @ -35 dB IMD3 100 dBµV
Max. output level TER @ -60dB IMD3 90 dBµV
LNB current max. 3000 mA
Switch commands DiSEqC 1.0/2.0, 13/18V, 0/22kHz

FREQUENCY RANGE
Frequency range TER Active: 47...862 / Passive: 5...862 MHz
Frequency range SAT 950…2200 MHz

GAIN
Gain - SAT (with 5 dB slope) -2…+3 ± 2 dB
Gain - TER 0 ± 2 dB

Dimensions product (H x D x W) 140x195x65 mm
