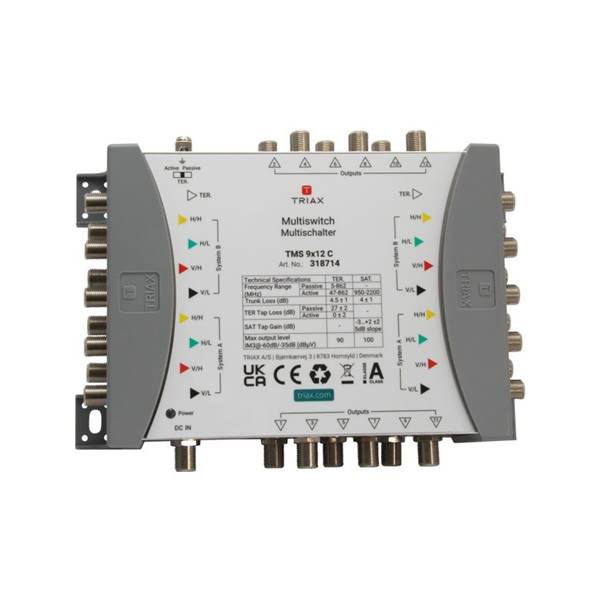

Πολυδιακόπτης C- Cascade 9 in ->12out TMS 9x12c TRIAX

TMS 9x12 C
Cascade multiswitch for 2 Satellite positions with 9 inputs and 9 trunk outputs, suitable for distributing satellite and terrestrial signals in small to large sized systems. Available with 12 subscriber outputs and powered by the TMS PSU external power supply either directly or via the SAT trunk lines.

Dependability guaranteed: a 6-year warranty is our guarantee that TRIAX’s core values of reliability and innovation are the foundation of our new multiswitches.

The TMS 9x12 C offers excellent performance and flexibility, with a compact design for installations even in confined spaces.

Excellent performance

Low insertion loss
High isolation
Low power consumption
RED compliant
ESD Protection
Flexibility

All the functionality you need in a simplified, streamlined range:

Easier to select the right product
Fewer products to stock
Active/Passive Terrestrial Switch
Convenience

Designed with installer convenience in mind:

Equidistant F-connectors on all multiswitches
Colour-coded input labels
LED power indicator
Flexible power injection

CONNECTORS
Connector Type F-female
Connector DC F-female
Number of trunk inputs 8 SAT, 1 TER
Number of trunk outputs 8 SAT, 1 TER
Subscriber outputs 12
Colorcoding @IF/TER inputs VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS
LNB type Quattro
Max. input level - SAT (IMD3 - 35dB) 98 dBµV
Max. input level - TER (IMD3 - 60dB) 90 dBµV
Max. output level SAT @ -35 dB IMD3 100 dBµV
Max. output level TER @ -60dB IMD3 90 dBµV
LNB current max. 3000 mA
Switch commands DiSEqC 1.0/2.0, 13/18V, 0/22kHz

FREQUENCY RANGE
Frequency range TER Active: 47...862 / Passive: 5...862 MHz
Frequency range SAT 950…2200 MHz

GAIN
Gain - SAT (with 5 dB slope) -3…+2 ± 2 dB
Gain - TER 0 ± 2 dB
Dimensions product (H x D x W) 140x195x65 mm 140x195x65 mm
