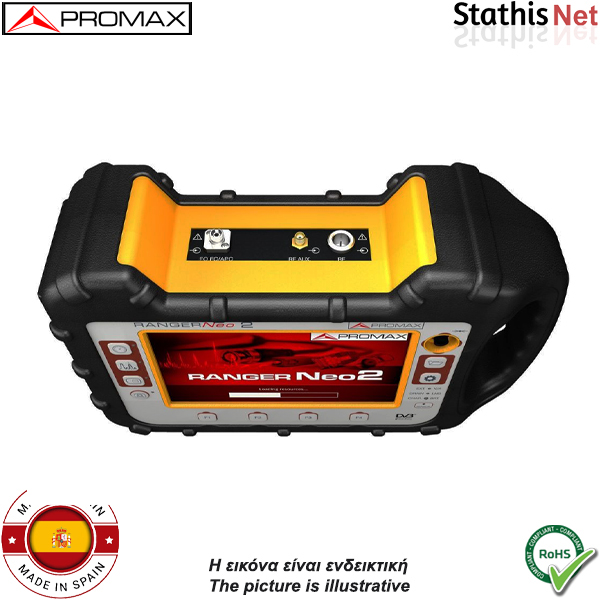

Πεδιόμετρο & αναλυτής φάσματος PROMAX HD RANGER Neo 2

 Οδηγίες Χρήσης
 Τεχνικές προδιαγραφές

OPERATION MODES
Hybrid operation: 7” touch screen or conventional buttons

DIGITAL STANDARDS
- DVB-T, DVB-T2, DVB-T2 lite
- DVB-T2-MI (Gateway to modulator)
- DVB-C, DVB-C2
- DVB-S, DVB-S2, DVB-S2 multistream
- DSS, ACM/VCM
- TS
VIDEO CODECS MPEG-2, MPEG-4 H.264, HEVC H.265
AUDIO CODECS MPEG-1, MPEG-2, HE-AAC, Dolby Digital,
Dolby Digital Plus

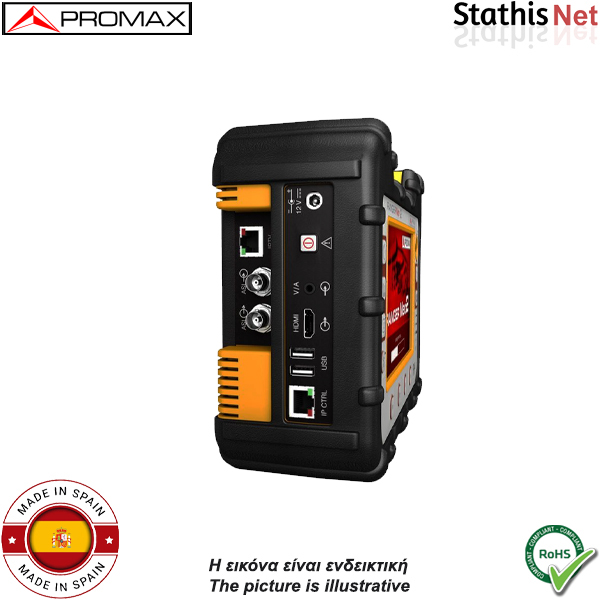

INPUTS AND OUTPUTS
- Universal RF connector 75 Ω
- ASI-TS input and output
- IPTV input UDP/RTP RJ45 Ethernet 1 Gbps
- HDMI output
- IP input for remote control
- Analogue Video/Audio input
- Common Interface module slot
- 2xUSB for data tranferring and GPS module

FUNCTIONS
- Merogram and Spectrogram
- Constellation diagram
- LTE
- Dynamic echoes analysis
- StealthID (instant identification
of tuning parameters)
- PLS (Physical Layer Scrambling)
- Ultra fast spectrum analyser
(70 ms sweeping time) with MAX/MIN hold
- FM RDS radio measurements and decoding
- Screenshots and Datalogger
for measurement reports
- Wideband LNB
- WiFi 2.4 GHz
- LTE 1.8 GHz
- OTT
- Service Recording
- DVB-S2 multistream
- Signal monitoring
- Field strength
- Task planner
- TS Recording
- TS Analysis
- Web server
- MER by Carrier
- IPTV multicast
- Shoulder Attenuation
- Beacon-Flyaways SNG and VSAT

RESOLUTION BANDWIDTHS
2, 10, 20, 40, 100, 200 kHz
1 MHz

OPTIONS
- Optical power meter
+ Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz
- WiFi 5 GHz + LTE 2.6 GHz
- DAB, DAB+
- GPS Coverage Analysis
- For rack assembly

PC CONNECTION (via ethernet interface)
- NetUpdate 4 (free software)
- Free and automatic firmware updates
- Remote control (webserver)
- User customised channel plans
- Measurement reports and screenshots
