Neutrik XLR αρσενικό με φίλτρο ασημί NC3MXX-EMC

Το EMC-XLR Series είναι μια ειδικά σχεδιασμένη έκδοση της σειράς ΧΧ δώσουν ενισχυμένη RF έλεγχος για κρίσιμες εφαρμογές σε ζωντανή εκτέλεση και την καταγραφή όπου υπάρχουν ιδιαίτερα προβλήματα με την μετάδοση ραδιοφωνικών ή κινητά τηλέφωνα

NC3MXX-EMC

3 pole male EMC-XLR cable connector

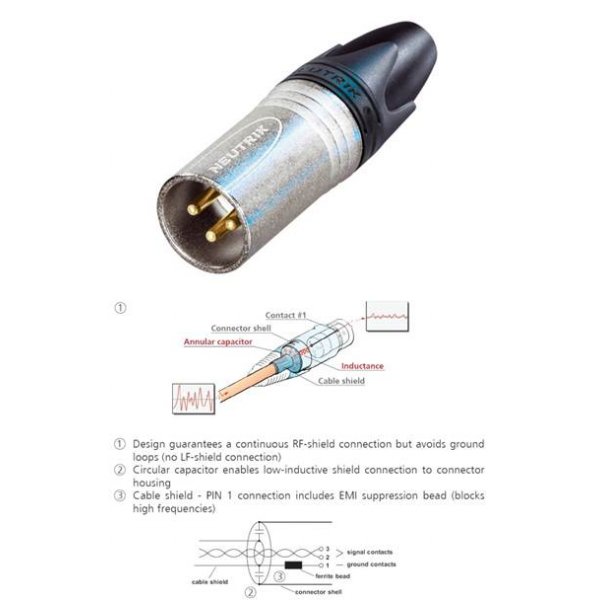

The EMC-XLR Series is a specifically designed version of the XX series to give enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as high-pass filter with a cut-off frequency around 10 MHz.
An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for improved RF rejection.


Features & Benefits

3 pole male and female XLR cable connector with integrated capacitive shield to shell connection
Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
Cable shield - Pin 1 connection includes EMI suppression bead to block high frequencies
Avoid ground loops as there is no LF-shield connection to ground
Rugged zinc diecast shell, long lasting and durable
Chuck type strain relief system for secure clamping of cables
Boot with rubber gland gives high protection against bending stresses
Branded with unique hologram - guarantees genuine and authentic Neutrik product
