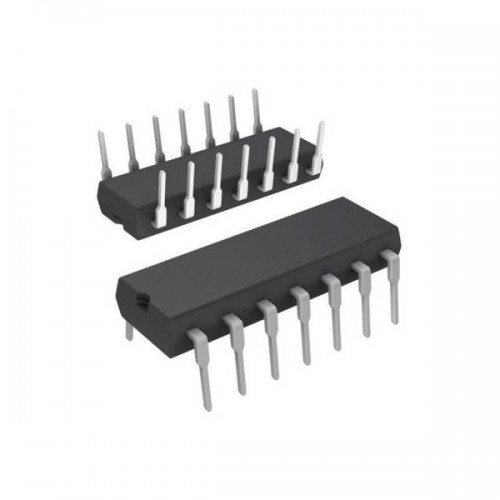

Multiplexer switch ICs Hi-Spd CMOS 8Ch CD74HC4051EE4 Texas Instruments
Προβολή
Manufacturer: Texas Instruments
Bandwidth: 180 Mhz
Product: Multiplexers/Demultiplexers
Number of Channels: 8 Channel
Switch Configuration: 1 x 8:1
On Resistance - Max: 130 Ohms
On Time - Max: 225 ns
Off Time - Max: 225 ns
Operating Supply Voltage: 2 V to 6 V
Voltage Supply Source: Single Supply, Dual Supply
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Maximum Dual Supply Voltage: +/- 5 V
Minimum Operating Temperature: - 55 C
Operating Temperature Range: - 55 C to + 125 C
Packaging: Tube
Propagation Delay Time: 60 ns
Factory Pack Quantity: 25
Supply Current - Max: 16 uA
Supply Voltage - Max: 6 V
Supply Voltage - Min: 2 V
- Κατασκευαστής: Texas Instruments
- Κωδικός Προϊόντος: 007473
- Διαθεσιμότητα: Διαθέσιμο
- Τιμή web: 1,05€
- (H τιμή συμπεριλαμβάνει ΦΠΑ)
- Χωρίς ΦΠΑ: 0,85€
