Μεγάφωνο woofer 4" 8Ω 80W SP-W100-PP SPHYNX
-14%
Αναμένεται Σύντομα
Προβολή

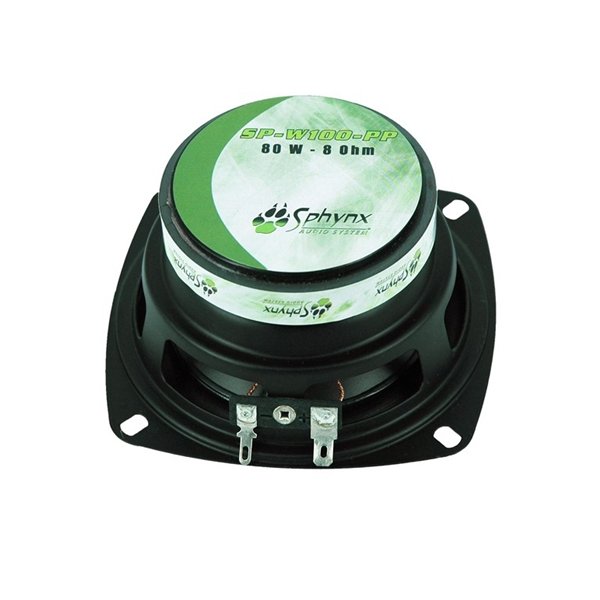

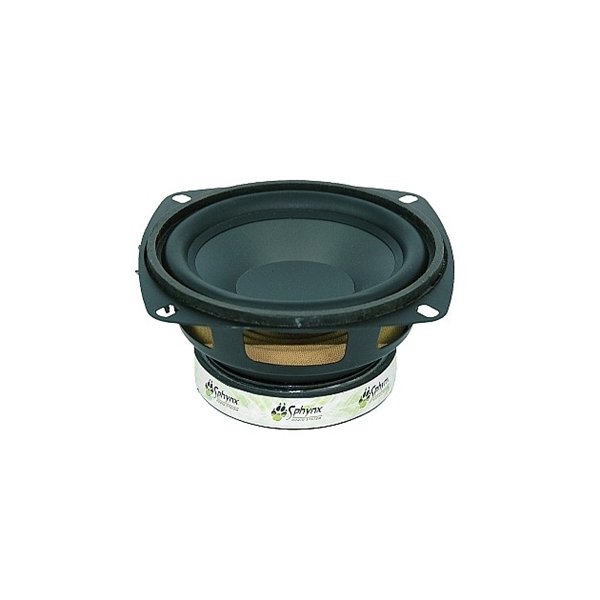

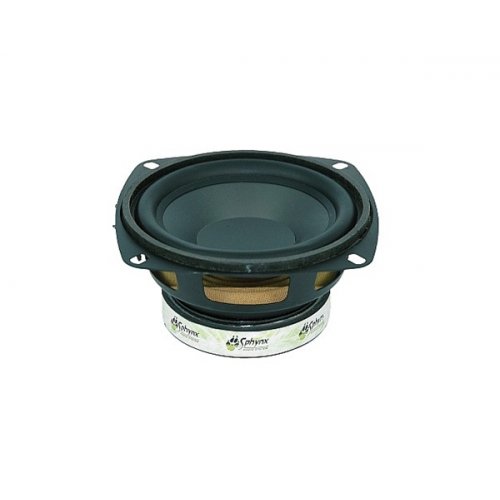

SP-W100-PP Polypro Hi-Fi woofer 4" - 105mm.
Χαρακτηριστικά
Impedance: 8 Ohm
Dimension: Ø 105 mm
P. RMS: 25 W
P. Max: 80 W
SPL (1W/1m): 90
F reson.: 70 Hz
F final: 7000 Hz
R (DC): 7.85 Hz
Voice Coil: Ø 25,9 mm
Voice Coil Mat.: ALUM
Magnet: Ø 70 mm
Magnet weight: 175 g
Total weight: 438 g
Zo (Zmax at Fo): 24,32 Ohm
Sd (Piston*Area): 0,01 sqM
BL (Flux*length): 5,187 TM
No (Ref Effncy): 0,072 %
Qms (Mech): 3,062 Q
Qes (Elec): 1,533 Q
Qts (Total): 1,021 Q
VAS (Ac.Vol): 2,17 L
Cms(compl.): 377.546 M/N
Mms (Total Mass): 10.292 g
Mmd (Diaph. Mass): 10.000 g
Added Mass Cone: 5.90 g
