Media Converter Single-Mode Gigabit 15Km MC210CS TP-LINK
Προβολή
Οδηγίες Χρήσης
Τεχνικές προδιαγραφές

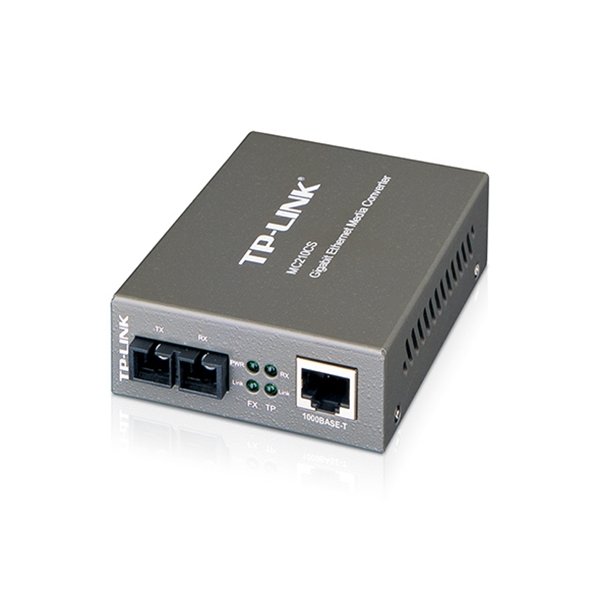

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa.
Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector.
The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs.
The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
