Μαγνητική παγίδα 27x6.35mm μαύρη ΙSN-C45BL Bosch

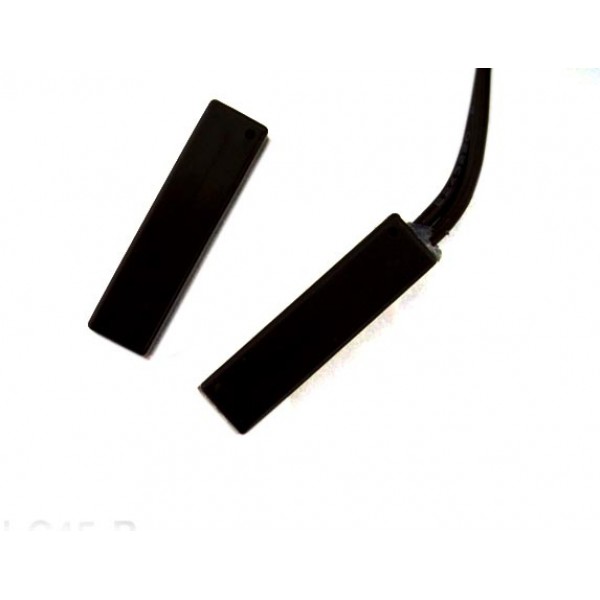

ISN-C45BL Miniature Super Stick Contacts with Side Leads

Closed loop
Miniature design
Special adhesive does not fall off, dry off, or freeze off
Side leads

The contacts are available in brown or white. Both models have a small, slim miniature design and include special adhesive that will not fall off from dryness or extreme cold. Use for tight-fitting applications.

Parts Included
Quantity Per Package Component
10 Contacts
10 Magnets

Technical Specifications

Specifications for All Models
Gap Width: 15.24 mm (0.60 in.)
Contact both Dimensions: 4.8 mm x 27 mm x 6.35 mm
Wire Lead Type: 0.8 mm (0.029 in.) 22 AWG,7 stranded
Wire Lead Length: 46 cm (18 in.)
Switch Configuration Type: Single pole single throw (SPST)
Maximum Contact Resistance: 150 μΩ (micro-ohm)
Minimum Breakdown Voltage: 200 VDC
Insulation Resistance: 109 Ω
Electrostatic Cap: 1.5 PF
Contact Capacity: 3 VAC
Maximum Conductive Current: 0.5 A
Maximum Voltage: 30 V
Operating Temperature Range: 7.2°C to -95.56°C (-45°F to -140°F)
