Κόρνα εξωτερική 23W 107dB SPL 8ΩΜ SC-615 TOA

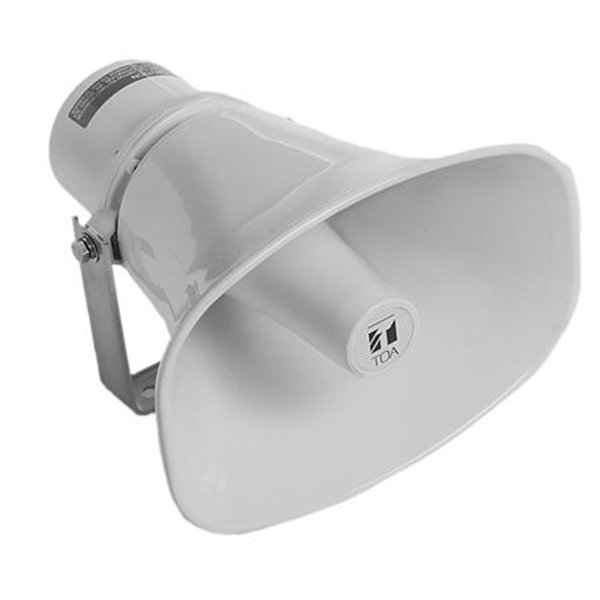

SC-615

The SC-615 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.

Specification

Rated Input 15W (mobile mount use, 10W)
Line Voltage n / a
Rated Impedance 8 Ω
Sound Pressure Level 112dB, 1W / 1m at 500 to 2,500 Hz peak level).
Frequency Response 280 ~ 12,500Hz
Sensitivity when used as Microphone (0 dB = 1 mW/10 dynes/cm 2) -22 dB at 1 kHz
IP Grade IP65
Polarity Hot; Black wire, com; White wire
Operating Temperature -20 ~ +55°C (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating / Reflector horn and rear cover: ABS resin, off-white / Bracket, Screws and bolts: Stainless steel / Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
Dimensions 222 (W) x 179 (H) x 234 (D) mm
Weight 1.1 kg
Material Aluminium
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
