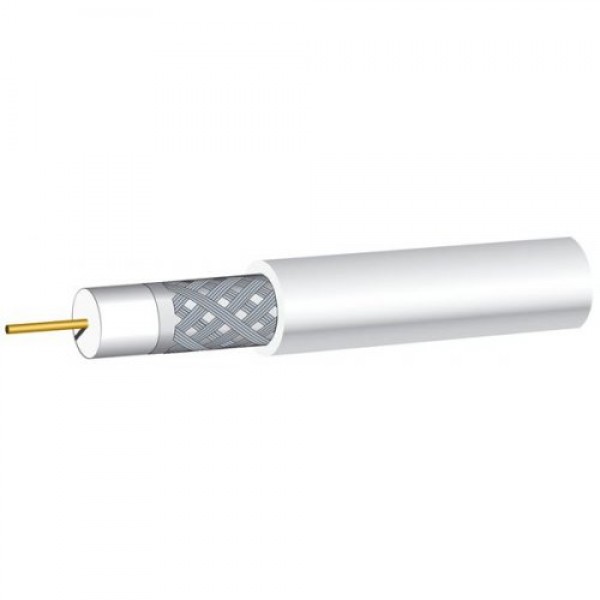

Καλώδιο 75ohm καρούλι 100m 32x0.12mm HYC-3 HAI

Specifications

75 ohm coaxial cable for satellite :
1: CE ROHS Approved
2: Good Quality Low Prices
3:Short delivery time.

75 ohm coaxial cable for satellite Specifications:

1)Conductor: 1.02mmBC, CCS
2)Insulation:PE/FPE
3)Shield : Al-Foil/ Bonded Al-Foil
4)Braiding: BC/CCA/AL
5)Jacket : 6.80mmPVC

Description:

Items RG6 Coaxial Cable

Model HYC-3

Inner conductor 1.02mm Bare Copper/CCS
insulator 4.65mm Solid PE/Foam PE
Braiding Bare Copper/CCA /AL
Cable external diameter 6.85±0.1mm PE/PVC Jacket
Impedance 75±3 Ohm
Capacitance 54 pf/m±3
Velocity of Propagation(%) 85
Frequency Maximum(dB/100ft) Maximum(dB/100m) Attenuation @68°F(20degree)

55MHZ 1.6 5.25
187MHZ 2.85 9.35
300MHZ 3.55 11.64
450MHZ 4.40 14.43
750MHZ 5.65 18.54
865MHZ 6.10 20.01
1000MHZ 6.55 21.49
1200MHZ 7.98 26.16
1450MHZ 8.46 27.73
1800MHZ 9.50 31.35
2200MHZ 9.73 31.92
