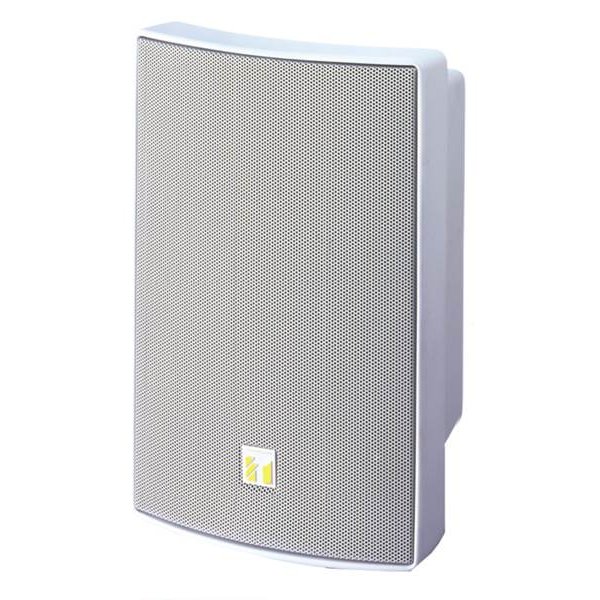

Ηχεία 2WAY λευκό BS-1030W TOA
Προβολή
Ηχείο 2-way bass reflex 30W, με πιστοποίηση IP-X3 (splashproof) δυνατότητα επιλογής λειτουργίας στα 70/100v ή 8Ω. Συνθετική κατασκευή καμπίνας, δυνατότητα επιτυχίας η επι-προσόψεως (flush-mount) τοποθέτησης (option bracket sp-410 & sp-420). Διαθέσιμο και σε μαύρο (BS-1030B).
Specification
Enclosure Type 2-way bass-reflex system
Rated Input 30 W
Rated Impedance 8 Ω
High impedance (100 V line): 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 k Ω (10 W), and 2 k Ω (5 W)
High impedance (70 V line): 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), and 1 k Ω (5 W)
Note: Impedance is changeable by means of the rotary switch.
Sound Pressure Level 90 dB (1 W, 1 m)
Frequency Response 80 - 20,000 Hz
Internal Speakers Low frequencies:
12 cm dynamic speaker
High frequencies:2.5 cm dome tweeter
Operating Temperature Range - 10°C to +50°C
Splash-Proof Capability IP-X3 (when the angle is specified in vertical or horizontal installation)
Dimensions 196 (w) x 290 (h) x 150 (d) mm
Weight 2.8 kg (speaker only)
Finish BS-1030B Case: ABS resin, white, paint
Grille: Pre-coated steel plate, white, paint
Bracket: Pre-coated steel plate, white, paint
