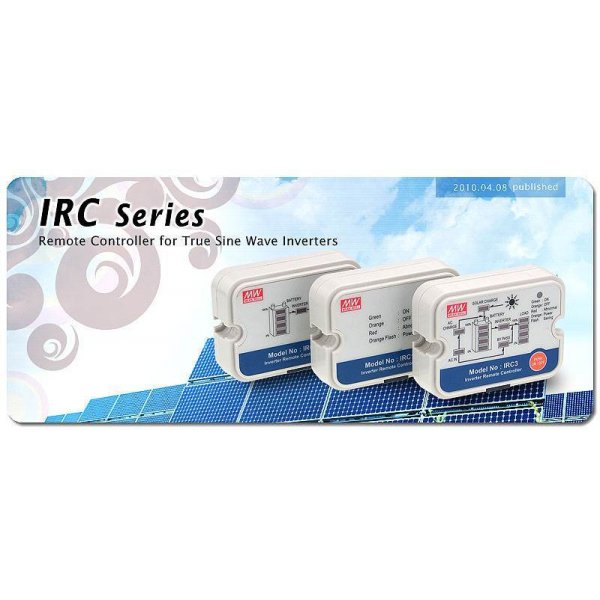

Inverter remote control IRC3 mean well

MEAN WELL has launched three kinds of remote controller ~ IRC/1/2/3 to fulfill the long distance control requirement of MEAN WELL DC/AC true sine wave inverters. With 94V-0 rated plastic case, these control units can effectively prevent users from electrical shock. Meanwhile, due to the special design of mounting holes at both sides, they can be installed on the flat surface (ex: wall), or can be installed behind the control panel (ex: power distribution board), which greatly increase the flexibility of installation. Thanks to the user friendly “plug and play” design, it works without any additional power supply by only connecting the RJ11 port directly to the socket on the inverter. In addition, they equipped with cable by 10FT (standard), 25FT or 50FT (optional) in length for usage in different connecting distances.


Built-in ON/OFF button for remote control function

LED indicators for remote ON/OFF, abnormal and power saving mode

LED indicators for monitoring inverter operating status

Wall-mounted and control panel assembly acceptable

Equipped with 10FT cable, optional for 25FT or 50FT

Certificates: CE / FCC

Dimensions(LxWxH): 75x 55x 21mm

2 years warranty

Suitable series:
IRC1: TS-700 / 1000 / 1500 / 3000, TN-1500 / 3000
IRC2: TS-700 / 1000 / 1500 / 3000
IRC3: TN-1500 / 3000
