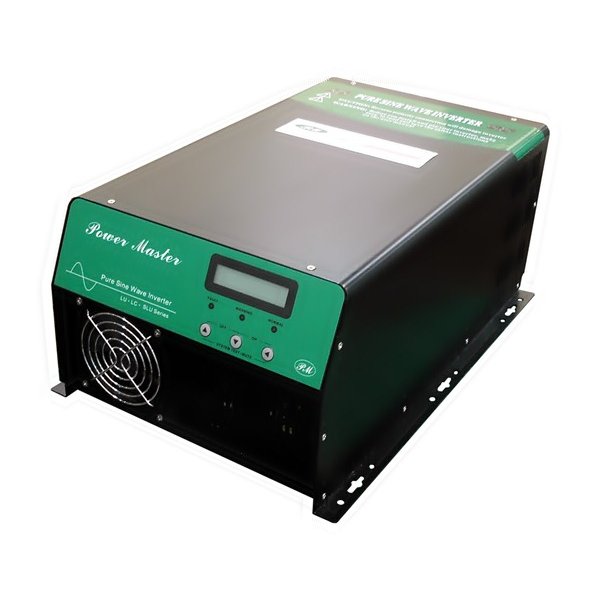

Inverter 24V->230V 1600W PM-1600LC power master καθαρό ημίτονο+φορτιστής

LCD display,Multistage charger,Fast Action AC Synchronized Transfer Switch,Microprocessor based design,Heat-Sink built in internal,Soft Start,AVR design,Input & Output isolated
Auto temperature control fan,Reverse polarity protection / by fuse / diodes /,Output short circuit protection,Temperature protection,Overload protection,Input low voltage protection
Input high voltage protection,Low battery alarm,Low battery shut-down.

Description:
PURE SINE WAVE inverter with built in AC Charger and LCD Display
Connect batteries and operate it as UPS.
This unit will be a UPS unit.
Specifications:
Output Power Continuous 1600W
Max. Surge Power 3200W
1. Input Section
Input Nominal Voltage 110Vac or 220Vac
Input Voltage Range 60V~140Vac or 120V~280Vac
Line Low Transfer 60Vac ± 2% or 120Vac ± 2%
Line Low Return 65Vac ± 2% or 130Vac ± 2%
Line High Transfer 140Vac ± 2% or 280Vac ± 2%
Line High Return 130Vac ± 2% or 260Vac ± 2%
Input Frequency 50Hz / 60Hz (45Hz~70Hz)
2. Output Section
Output Voltage 100 / 110 / 115 / 120Vac or 200 / 220 / 230 / 240Vac re-settable via LCD panel
Waveform Pure Sine Wave
Voltage Regulation (Batt. Mode) < 3% RMS for entire battery voltage range
Output Frequency 50Hz or 60Hz ± 0.1Hz
Efficiency > 80%
Maximum Load Up to short circuit
Asymmetrical Load Max. Up to nominal output power
Overload and Short Circuit Protection
Automatic disconnection Overheating Temperature Protection
Acoustic warning before shut-off.Automatic restart
Power Factor 0.8
3. Battery Section
Voltage Range 24VDC (20~32VDC)
Backup Time (at full load) Long time available
Input Frequency Range 45~70Hz
Max. Charging Current (3 steps selectable) 60/80/100Amp
4. Display
LCD Display UPS status, I/P&O/P Voltage Frequency, Load%, Battery Voltage & %, Temperature, Model
LED Display Normal (Green),Warning (Yellow) Fault (Red).
