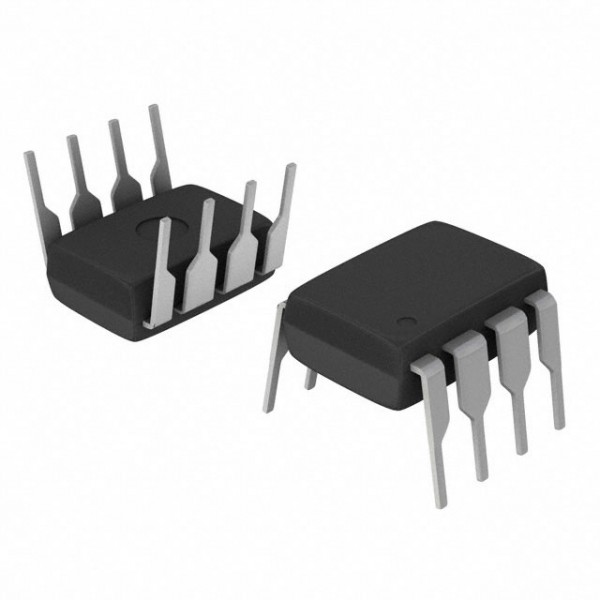

IC PDIP-8 Power JFET TL061CP

 Τεχνικές προδιαγραφές

Operational Amplifiers - Power JFET

Number of Channels: 1 Channel
GBP - Gain Bandwidth Product: 1 MHz
SR - Slew Rate: 3.5 V/us
Vos - Input Offset Voltage: 15 mV
Ib - Input Bias Current: 400 pA
Supply Voltage - Max: 30 V
Supply Voltage - Min: 7 V
Operating Supply Current: 200 uA
Output Current per Channel: 10 mA
CMRR - Common Mode Rejection Ratio: 86 dB
en - Input Voltage Noise Density: 42 nV/sqrt Hz
Package/Case: PDIP-8
Mounting Style: Through Hole
Shutdown: No Shutdown
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Amplifier Type: Low Power Amplifier
Brand: Texas Instruments
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Input Type: Rail-to-Rail
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 3.5 V
Operating Supply Voltage: 7 V to 36 V, +/- 3.5 V to +/- 18 V
Technology: BiFET
Vcm - Common Mode Voltage: Negative Rail + 4 V to Positive Rail - 4 V
Voltage Gain dB: 75.56 dB

Width: 6.35 mm
Height: 4.57 mm
Length: 9.81 mm

Unit Weight: 450 mg
