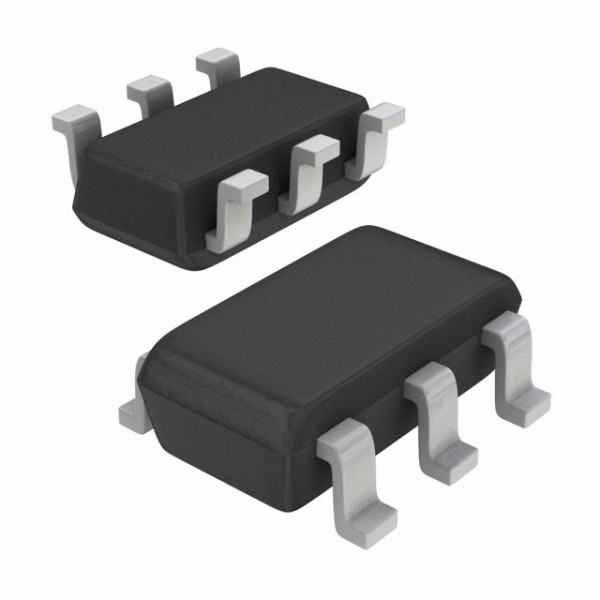

Ic RF Switch 50-3000MHz Iso 21dB IL .35dB@2.4GHz SPDT SOT-26 MASWSS0176TR-3000 MACOM
Προβολή
Specifications
Switch Configuration: SPDT
Minimum Frequency: 500 MHz
Maximum Frequency: 3 GHz
Insertion Loss: 0.35 dB
Off Isolation - Typ: 21 dB
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package/Case: SOT-26
Technology: GaAs
Number of Switches: Single
Off Time - Max: 40 ns
On Time - Max: 40 ns
Operating Supply Current: 5 uA
Product Type: RF Switch ICs
Subcategory: Wireless & RF Integrated Circuits
Unit Weight: 30 mg
