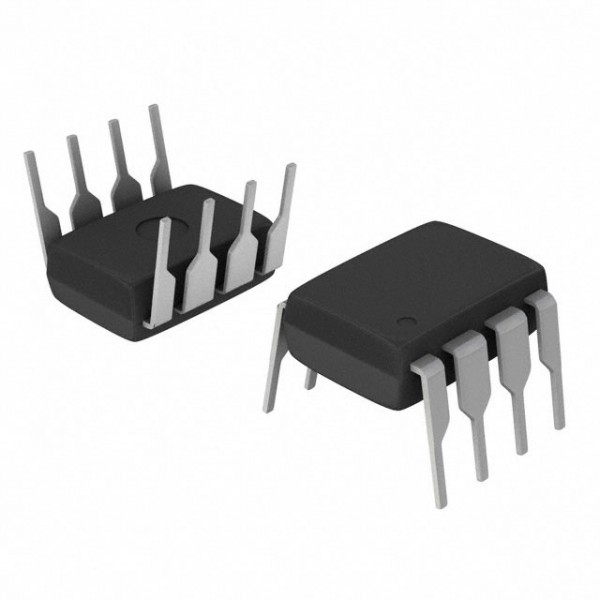

IC ±5 ±15 VDC 10 MHz DIP-8 NE5532N Texas Intruments

NE 5532 A DIP
Dual Low-Noise Operational Amplifier

Description
The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.

Features
• Equivalent Input Noise Voltage: 5 nV/vHz Typ at 1 kHz
• Unity-Gain Bandwidth: 10 MHz Typ
• Common-Mode Rejection Ratio: 100 dB Typ
• High DC Voltage Gain: 100 V/mV Typ
• Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 ?
• High Slew Rate: 9 V/µs Typ

Applications
• AV Receivers
• Embedded PCs
• Netbooks
• Multichannel Video Transcoders
• Pro Audio Mixers
9900000133870
General
Model Operational amplifier
Type Compensated internally, doubly low-noise
Design 2-fach
Mounting form DIP-8
