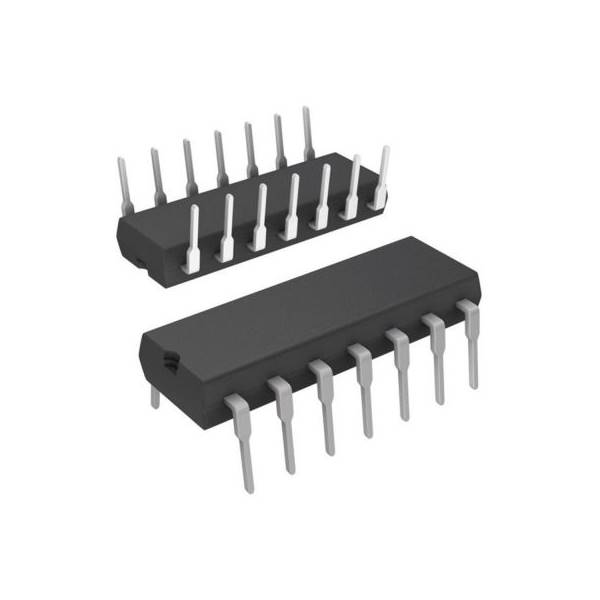

IC Logic Gates triple 3-Input PDIP-14 CD74HC4075 Texas Instruments
Προβολή
Specifications
Number of Gates: 3 Gate
Number of Input Lines: 3 Input
Number of Output Lines: 1 Output
High Level Output Current: - 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 25 ns
Supply Voltage - Max: 6 V
Supply Voltage - Min: 2 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Input Type: CMOS
Logic Type: 3-Input OR
Number of Bits: 3 bit
Operating Supply Current: 20 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: - 55 C to + 125 C
Output Type: CMOS
Product Type: Logic Gates
Subcategory: Logic ICs
Unit Weight: 1 g
Width: 6.35 mm
Height: 4.57 mm
Length: 19.3 mm
- Κατασκευαστής: Texas Instruments
- Κωδικός Προϊόντος: 035770
- Διαθεσιμότητα: Διαθέσιμο
- Τιμή web: 1,20€
- (H τιμή συμπεριλαμβάνει ΦΠΑ)
- Χωρίς ΦΠΑ: 0,97€
