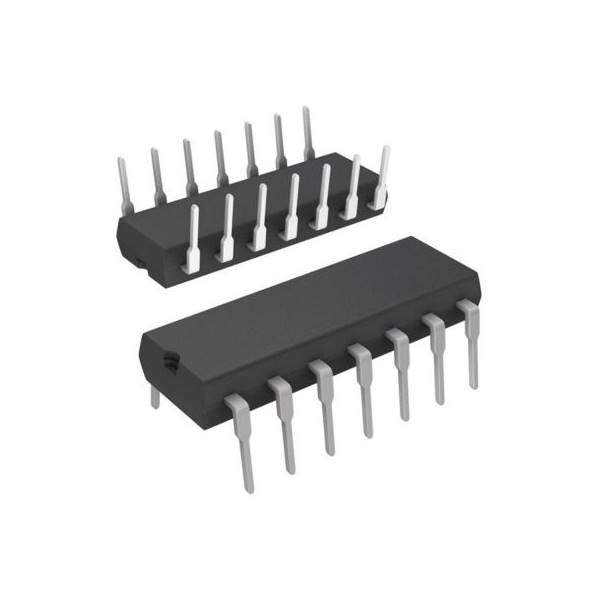

IC CD4070 quad or gate PDIP-14
Προβολή
Specifications
Single-Function Gate
Logic Function: XOR
Logic Family: CD4000
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: - 1.5 mA
Low Level Output Current: 1.5 mA
Propagation Delay Time: 130 ns
Supply Voltage - Max: 18 V
Supply Voltage - Min: 3 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Function: Quad ExclusiVe
Height: 4.57 mm
Input Type: CMOS
Length: 19.3 mm
Logic Type: XOR
Number of Bits: 4 bit
Operating Supply Current: 15 uA
Operating Supply Voltage: 10 V
Operating Temperature Range: - 55 C to + 125 C
Output Type: CMOS
Quiescent Current: 20 nA
Width: 6.35 mm
Unit Weight: 1 g
- Κατασκευαστής: Texas Instruments
- Κωδικός Προϊόντος: 007481
- Διαθεσιμότητα: Διαθέσιμο
- Τιμή web: 0,76€
- (H τιμή συμπεριλαμβάνει ΦΠΑ)
- Χωρίς ΦΠΑ: 0,61€
