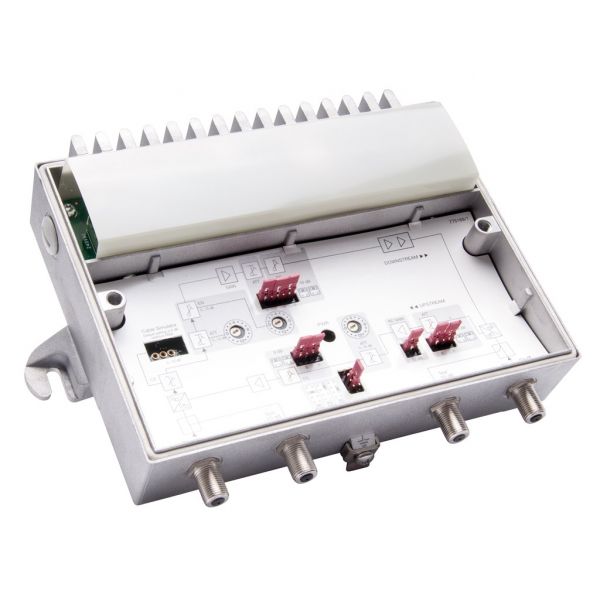

Ενισχυτής γραμμής 41dB GPV 950 L TRIAX

 Τεχνικές προδιαγραφές

High Output Distribution Amplifier with active return path

GPV 950 L are high output Distribution Amplifiers for use in CATV distribution networks in multi-dwelling premises primarily.
Switching of the basic gains enables to configure the amplifiers as line extender in different configurations.
All functional parts and setting elements are implemented on the printed board.
Thus you do not need external accessories for configuration and operation of the amplifier in generally.

FREQUENCY RANGE
Frequency range 40/85...1006 MHz
Frequency response ± 1.0 dB

LOSS
Equalization 0...15 dB, 1 dB steps by rotary switches
Attenuation forward - line equalizer at input 33 dB

GAIN
Slope - Interstage DS 0/3/7/10, US 0/3/6/9 dB
Gain forward - Interstage 41/33 dB dB

CONNECTORS
Number of outputs 1
RF connector - Test point input: bi-directional -20 dB
RF connector - Test point output: directional -20 dB

CHARACTERISTICS
Output level CSO @ 60 dB IMD (42 ch) flat 114/116 dBµV
Output level CTB @ 60 dB IMD (42 ch) flat 113/115 dBµV
Output level return path 120 dBµV

OPERATIONAL
LED indicator Green
LINE power AC voltage (max.) 28-65 VAC via RF input VAC
IP Housing protection class IP 65
Insulation Class II
