Ελεγχος προστασίας Μηχανής 12v DKG-110 DATAKOM

 Τεχνικές προδιαγραφές

Description

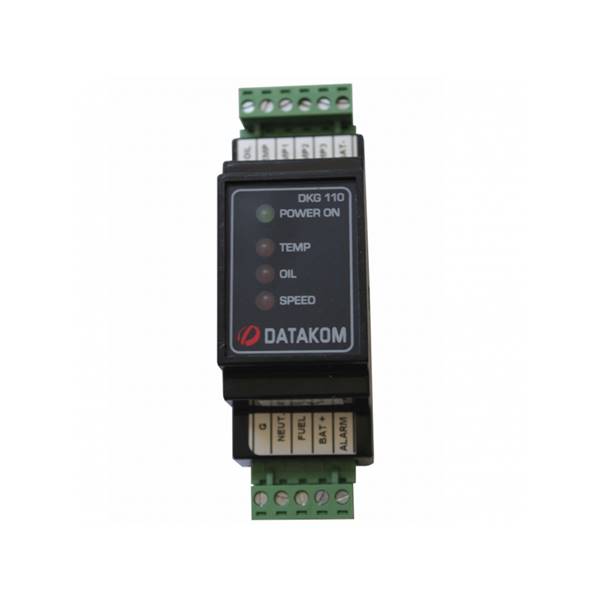

The DATAKOM model DKG-110 is a low cost, microprocessor controlled engine protection unit intended for use in manual generating sets as a safety shutdown device. This unit is mounted on a standard DIN rail inside the generator control panel.

The unit offers the basic protection features for a genset as Engine High Temperature, Engine Low Oil Pressure and Generator Overspeed/Underspeed.

Each alarm led has a separate semiconductor output, enabling the use of distant visual warning lights. The unit has Energize to Stop and 60Hz options selected at the manufacture stage. The unit has different models for 12 and 24 volt plants.

It offers the basic protection features for a genset as Engine High Temperature, Engine Low Oil Pressure and Generator Overspeed/Underspeed.

The limits for the correct generator frequency are 30 to 57 Hz. A 3 second delay is provided to enable high current startups.

The Safety On signal is picked up from the AC Generator voltage input.

The unit is normally powered up via the start/stop key of the control panel. It feeds the fuel solenoid of the engine. On power-up the power led is steadily on. When the protections are active, the led will be flashing.

The unit is available in a DIN rail mount package with standard dimensions of 36x116x60mm.

• DIN rail mounted
• Low cost
• Fuel and alarm relay outputs
• 3 semiconductor lamp outputs
• Generator voltage input
• Survives cranking dropouts
• Standard dimensions, 36mm width
• Plug-in connection system for easy replacement.

TECHNICAL SPECIFICATIONS:
Step control: 8 bit microcontroller.
Generator voltage: 50 to 277VAC (Ph-N)
Generator frequency: 20 to 100Hz.

DC Supply Range:
9 to 18 V-DC (12V models)
18 to 33 V-DC (24V models)

Current consumption:
80 mA-DC typical (no alarm)
120 mA-DC max. (outputs open)

Total DC Current Output Rating: 10A-DC.
Max. Current for each relay output: 10A.
Max. Current for each alarm output: 250mA.
Operating temp.: -10C (14F) to 60 C (140F).
Storage temp.: -20C (-4F) to 80 C (176F).
Maximum humidity: 95% non-condensing.

Conformity (EU directives)
-73/23/EEC and 93/68/EEC (low voltage)
-89/336/EEC, 92/31/EEC and 93/68/EEC (electro-magnetic compatibility)
Norms of reference:
EN 61010 (safety requirements)
EN 50081-2 (EMC requirements)
EN 50082-2 (EMC requirements)

Dimensions: 36 x 116 x 60mm (WxHxD)
Weight: 90 g (approx.)
