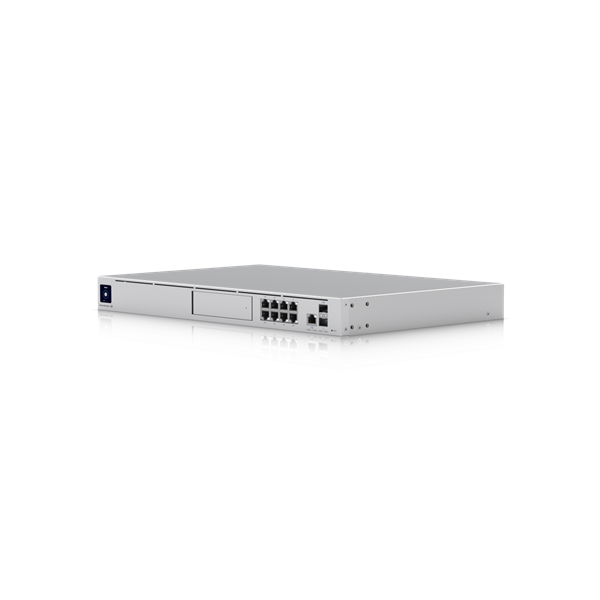

Dream Machine Special Edition UniFi Controller switch 8xGigabit 1xSFP+ Quad-Core eMMC Ubiquiti

 Τεχνικές προδιαγραφές

Specifications

• Mechanical
- Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
- Weight: 5 kg (10.9 lb)
- Enclosure material: Aluminium CNC, SGCC steel
- Mount material: SGCC steel

• Hardware
- Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
- System memory: 4 GB DDR4
- On-board storage: 16 GB eMMC
- Integrated: 128 GB SSD
- Management interface: Ethernet
- Bluetooth
• Networking interface:

- LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port

- WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port

- PoE interface: (6) PoE (Pair A 1, 2+; 3, 6-)
(2) PoE+ (Pair A 1, 2+; 3, 6-)

IDS/IPS throughput 3.5 Gbps*
*Measured with iPerf3
- Power method
(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A
- Power supply: AC/DC, internal, 240W
- Supported voltage range: 100—240V AC
- Max. power consumption: 50W (Excluding PoE output)
- PoE budget: 180W

• Max. PoE wattage per port by PSE
- PoE: 15.4W
- PoE+: 30W

• Voltage range PoE mode:
- PoE: 44—57V
- PoE+: 50—57V

- ESD/EMP protection: Air: ± 15kV, contact: ± 8kV
- LCM display: (1) 1.3" touchscreen
- Button: Factory reset
- Operating temperature: -10 to 40° C (14 to 104° F)
- Operating humidity: 5 to 95% noncondensing
- Gateway Features

• Performance
- Redundant WAN with failover and load balancing
- WiFi QoS with UniFi APs
- Application, domain, and country-based QoS
- Application and device type identification
- Additional internet failover with LTE Backup
- Internet quality and outage reporting

• Next-generation security
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall

• Advanced networking
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport and Identity VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support

• LEDs
- Ethernet White: link/activity
- SFP+ White: link/activity
- HDD White: disk activity
- Amber: disk error
- RPS Blue: ready


- Certifications: CE, FCC, IC
