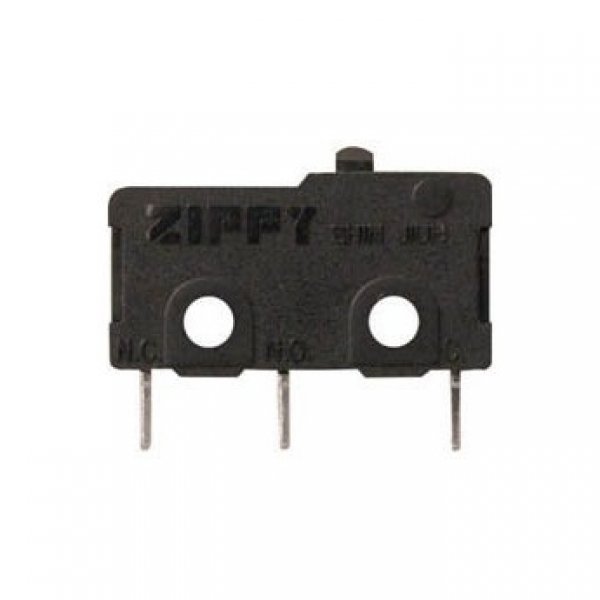

Διακόπτης micro switch με button SPDT 5A 125/250V AC PCM SM-05S-00P0-Z

Διακόπτης MICRO

SM SERIES

Specifications

Unless otherwise specified, a tolerance of ±0.4mm applies to all dimensions.
Contact Resistance(initial)
Max. 300 mΩ
Measured by ohm meter - open voltage < 1VDC, driver current -100 mA
Insulation Resistance (at 500 VDC / minute)
Min. 100 MΩ
Dielectric Strength
Min. 1000VAC(50-60HZ)/minute between Live parts.
Min. 1250VAC(50-60HZ)/minute between Live parts and dead metal parts
Operating Temperature Range
-40℃ to 120℃ ( with no icing )
Vibration
10~55Hz, displacement 0.75 mm (p-p)
Electrical Service Life
0.1A - Min. 1,000,000 operations
Other rating - Min. 10,000 operations
Electrical Operating Frequency
10~30 operations per minute
Mechanical Service Life
Min. 10,000,000 operations
Mechanical Operating Frequency
120 operations per minute
Operating application of the switch
Set the switch pushing distance from 60% to 90% of the specified OT value

Applications

Telephone, Air conditioner, Computer, Humidifier, Alarm, Time recorder,
Mixer & Chopper, Solder gun, Neon phone, Fax machine, Joystick, Water
pump, Gas detector, Pencil sharpener, Money sorter, Food processor,
Electric knife, Toy car, Juicer, Electric steak pan.
