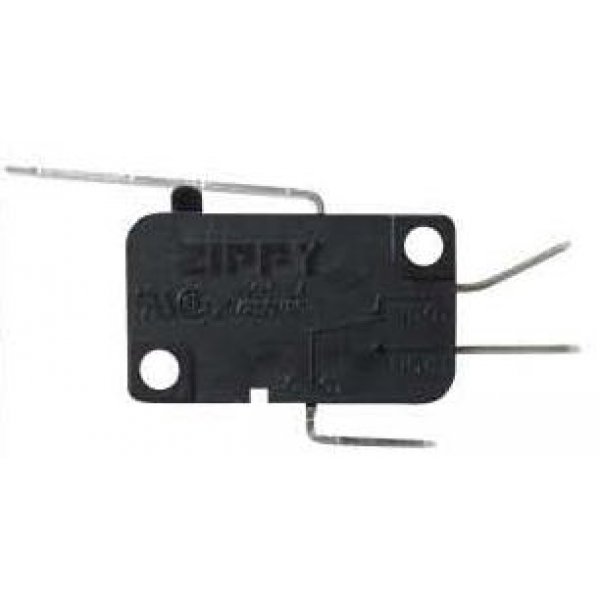

Διακόπτης micro switch με λαμάκι 27.5mm 15A/250VAC VMN-15S-02-BC-Z ZIPPY

Διακόπτης micro switch με λαμάκι 27.5mm 15A/250VAC VMN-15S-02-BC-Z ZIPPY


Διακόπτης MICRO

VMN SERIES

Specification

Unless otherwise specified, a tolerance of ±0.4mm applies to all dimensions.
Contact Resistance(initial)
Max. 100 mΩ
Measured by ohm meter - open voltage < 1VDC, driver current -100 mA
Insulation Resistance (at 500 VDC / minute)
Min. 100 MΩ
Dielectric Strength
Min. 1000VAC(50-60HZ)/minute between Live parts.
Min. 1500VAC(50-60HZ)/minute between Live parts and dead metal parts
Operating Temperature Range
-40℃ to 125℃ ( with no icing )
Vibration
10~55Hz, displacement 0.75 mm (p-p)
Electrical Service Life
0.1A - Min. 1,000,000 operations
Other ratings - Min. 10,000 operations
Electrical Operating Frequency
10~30 operations per minute
Mechanical Service Life
Min. 10,000,000 operations
Mechanical Operating Frequency
120 operations per minute
Operating application of the switch
Set the switch pushing distance from 60% to 90% of the specified OT value

Applications

Joystick, TV game, Time Recorder, Air Conditioner, Food Processor,
Juice Maker, Alarm, Mixer, Shredder Machine.
  • Κατασκευαστής: ZIPPY
  • Κωδικός Προϊόντος: 000499
  • Διαθεσιμότητα: Διαθέσιμο
  • Τιμή web: 2,70€
  • (H τιμή συμπεριλαμβάνει ΦΠΑ)
  • Χωρίς ΦΠΑ: 2,18€
